This type of node basically is a convenience class for managing and creating offscreen renderings. More...

#include <WGEOffscreenRenderNode.h>

Inheritance diagram for WGEOffscreenRenderNode:

Collaboration diagram for WGEOffscreenRenderNode:

Public Types
typedef osg::ref_ptr< WGEOffscreenRenderNode >	RefPtr
	Convenience typedef for an osg::ref_ptr. More...

typedef osg::ref_ptr< const WGEOffscreenRenderNode >	ConstRefPtr
	Convenience typedef for an osg::ref_ptr; const. More...

Public Types inherited from WGEGroupNode
typedef WPredicateHelper::ArbitraryPredicateBase< osg::ref_ptr< osg::Node > const >	NodePredicate
	The base type of predicate. More...

Public Member Functions
	WGEOffscreenRenderNode (osg::ref_ptr< WGECamera > reference, size_t width=2048, size_t height=2048, bool noHud=false)
	Create a new managing instance. More...

virtual	~WGEOffscreenRenderNode ()
	Destructor. More...

osg::ref_ptr< WGETextureHud >	getTextureHUD () const
	Returns the instance of the texture HUD. More...

virtual osg::ref_ptr< WGEOffscreenRenderPass >	addGeometryRenderPass (osg::ref_ptr< osg::Node > node, std::string name="Unnamed")
	Creates a new offscreen-render-pass coupled with the reference camera which renders a specified OSG graph to a texture. More...

virtual osg::ref_ptr< WGEOffscreenRenderPass >	addGeometryRenderPass (osg::ref_ptr< osg::Node > node, osg::ref_ptr< WGEShader > shader, std::string name="Unnamed")
	Creates a new offscreen-render-pass coupled with the reference camera which renders a specified OSG graph to a texture. More...

virtual osg::ref_ptr< WGEOffscreenTexturePass >	addTextureProcessingPass (std::string name="Unnamed")
	Creates a new offscreen-render-pass coupled with the reference camera which simply processes textures. More...

virtual osg::ref_ptr< WGEOffscreenTexturePass >	addTextureProcessingPass (osg::ref_ptr< WGEShader > shader, std::string name="Unnamed")
	Creates a new offscreen-render-pass coupled with the reference camera which simply processes textures. More...

virtual osg::ref_ptr< WGEOffscreenFinalPass >	addFinalOnScreenPass (std::string name="Unnamed")
	Creates a new render pass which can be seen as put-textures-back-on-screen-pass. More...

virtual osg::ref_ptr< WGEOffscreenFinalPass >	addFinalOnScreenPass (osg::ref_ptr< WGEShader > shader, std::string name="Unnamed")
	Creates a new render pass which can be seen as put-textures-back-on-screen-pass. More...

template<typename T >
osg::ref_ptr< T >	addRenderPass (std::string name="Unnamed")
	Creates a new offscreen-render-pass coupled with the reference camera. More...

size_t	getTextureWidth () const
	Get FBO texture width. More...

size_t	getTextureHeight () const
	Get FBO texture height. More...

void	setLinkViewportToTextureSize (bool vp=true)
	If true, the viewport has the size of the resulting texture. More...

bool	getLinkViewportToTextureSize () const
	The flag denotes whether the viewport is linked to the texture size or the reference camera. More...

Public Member Functions inherited from WGEGroupNode
	WGEGroupNode ()
	Default constructor. More...

void	insert (osg::ref_ptr< osg::Node > node)
	Adds the specified node to the child list of this node in a safe manner. More...

void	remove (osg::ref_ptr< osg::Node > node)
	Removes the specified node from this group in a thread safe manner. More...

void	remove_if (std::shared_ptr< WGEGroupNode::NodePredicate > predicate)
	Removes a node if the specified predicate evaluates to true. More...

void	clear ()
	Removes all children from this node. More...

Private Attributes
osg::ref_ptr< WGECamera >	m_referenceCamera
	The camera to which is used for setting this camera up. More...

osg::ref_ptr< WGETextureHud >	m_hud
	The pointer to the hud used to render all used texture buffers. More...

size_t	m_textureWidth
	The width of each texture in this offscreen rendering. More...

size_t	m_textureHeight
	The height of each texture in this offscreen rendering. More...

size_t	m_nextPassNum
	The number of the next pass getting added. More...

bool	m_forceViewportTextureSize
	Flag denotes whether the viewport is coupled to the reference camera or the texture size. More...

Additional Inherited Members
Protected Types inherited from WGEGroupNode
enum	ChildOperationType { INSERT = 0 , REMOVE , REMOVE_IF , CLEAR }
	The type of operation to perform. More...

Protected Member Functions inherited from WGEGroupNode
virtual	~WGEGroupNode ()
	Destructor. More...

Protected Attributes inherited from WGEGroupNode
osg::ref_ptr< SafeUpdaterCallback >	m_nodeUpdater
	Node callback used to update this root node. More...

std::queue< std::shared_ptr< ChildOperation > >	m_childOperationQueue
	Queue of childs that need to be added/removed during the next update cycle. More...

std::shared_mutex	m_childOperationQueueLock
	Lock used for inserting and removing childs into the child insertion/removal queue. More...

bool	m_childOperationQueueDirty
	Flag denoting whether the m_childOperationQueue should be considered during the next update of the node. More...

bool	m_removeAll
	True whenever all child nodes should be removed. More...

Detailed Description

This type of node basically is a convenience class for managing and creating offscreen renderings.

The children of this node should be of type WGEOffscreenRenderPass. This class provides factories to create offscreen-render-pass instances with proper sizes with a coupling to a reference camera. This is useful to provide automatic viewport scaling etc. to each render-pass. You do not explicitly need this class to create offscreen-renderings at all. You can manually manage multiple WGEOffscreenRenderPass instances.

It is important to understand, that the graph (your scene) must not be a children of this node. This node can be placed somewhere in your scene. The OSG collects all the cameras (and offscreen-cameras) and render then independently from their position in the graph (except for transformations inherited from others).

Note: Please not that you should not modify the whole wiring and offscreen configuration if the this node has been added as it is not thread-safe.

Definition at line 55 of file WGEOffscreenRenderNode.h.

Member Typedef Documentation

◆ ConstRefPtr

typedef osg::ref_ptr< const WGEOffscreenRenderNode > WGEOffscreenRenderNode::ConstRefPtr

Convenience typedef for an osg::ref_ptr; const.

Definition at line 66 of file WGEOffscreenRenderNode.h.

◆ RefPtr

typedef osg::ref_ptr< WGEOffscreenRenderNode > WGEOffscreenRenderNode::RefPtr

Convenience typedef for an osg::ref_ptr.

Definition at line 61 of file WGEOffscreenRenderNode.h.

Constructor & Destructor Documentation

◆ WGEOffscreenRenderNode()

WGEOffscreenRenderNode::WGEOffscreenRenderNode	(	osg::ref_ptr< WGECamera >	reference,
		size_t	width = `2048`,
		size_t	height = `2048`,
		bool	noHud = `false`
	)

Create a new managing instance.

It uses the specified camera as reference to all created offscreen-render-pass instances. Especially viewport, clear-mask and clear-color get used. The default texture resolution is 2048x2048 which is more than full-HD resolution. So it should be enough.

Note: The width and hight define the offscreen texture size. The viewport if each rendering is automatically set to the one of the reference camera. This means, width and height only define the maximal supported resolution without upscaling of your offscreen renderer.

Parameters

reference	camera used as reference
width	the width of the textures used in this rendering. Must be in [8,4096] and a power of two.
height	the height of the textures used in this rendering. Must be in [8,4096] and a power of two.
noHud	If true, no hud gets displayed showing the created and used textures.

Definition at line 44 of file WGEOffscreenRenderNode.cpp.

References WGEGroupNode::insert(), m_hud, and m_referenceCamera.

Here is the call graph for this function:

◆ ~WGEOffscreenRenderNode()

WGEOffscreenRenderNode::~WGEOffscreenRenderNode ( )

virtual

Destructor.

Definition at line 65 of file WGEOffscreenRenderNode.cpp.

Member Function Documentation

◆ addFinalOnScreenPass() [1/2]

osg::ref_ptr< WGEOffscreenFinalPass > WGEOffscreenRenderNode::addFinalOnScreenPass	(	osg::ref_ptr< WGEShader >	shader,
		std::string	name = `"Unnamed"`
	)

virtual

Creates a new render pass which can be seen as put-textures-back-on-screen-pass.

It renders a full-screen quad to the on-screen frame-buffer. An optional shader can be used for final processing (most commonly clipping, blending, color-mapping and so on).

Parameters

shader	the shader to add
name	the name of the render pass. You should specify it to enable the nice debugging feature of WGETextureHud.

Returns: the on-screen render pass which draws processed textures back on screen.

Definition at line 125 of file WGEOffscreenRenderNode.cpp.

◆ addFinalOnScreenPass() [2/2]

osg::ref_ptr< WGEOffscreenFinalPass > WGEOffscreenRenderNode::addFinalOnScreenPass ( std::string name = "Unnamed" )

virtual

Creates a new render pass which can be seen as put-textures-back-on-screen-pass.

It renders a full-screen quad to the on-screen frame-buffer. An optional shader can be used for final processing (most commonly clipping, blending, color-mapping and so on).

Parameters

name	the name of the render pass. You should specify it to enable the nice debugging feature of WGETextureHud.

Returns: the on-screen render pass which draws processed textures back on screen.

Definition at line 119 of file WGEOffscreenRenderNode.cpp.

◆ addGeometryRenderPass() [1/2]

osg::ref_ptr< WGEOffscreenRenderPass > WGEOffscreenRenderNode::addGeometryRenderPass	(	osg::ref_ptr< osg::Node >	node,
		osg::ref_ptr< WGEShader >	shader,
		std::string	name = `"Unnamed"`
	)

virtual

Creates a new offscreen-render-pass coupled with the reference camera which renders a specified OSG graph to a texture.

Parameters

node	the node which represents the subgraph.
name	the name of the render pass. You should specify it to enable the nice debugging feature of WGETextureHud.
shader	the shader to add.

Note: never forget to remove the returned node if not used anymore or use WGEGroup::clean.

Returns: the geometry render pass.

Definition at line 87 of file WGEOffscreenRenderNode.cpp.

◆ addGeometryRenderPass() [2/2]

osg::ref_ptr< WGEOffscreenRenderPass > WGEOffscreenRenderNode::addGeometryRenderPass	(	osg::ref_ptr< osg::Node >	node,
		std::string	name = `"Unnamed"`
	)

virtual

Creates a new offscreen-render-pass coupled with the reference camera which renders a specified OSG graph to a texture.

Parameters

node	the node which represents the subgraph.
name	the name of the render pass. You should specify it to enable the nice debugging feature of WGETextureHud.

Note: never forget to remove the returned node if not used anymore or use WGEGroup::clean.

Returns: the geometry render pass.

Definition at line 70 of file WGEOffscreenRenderNode.cpp.

References wge::generateDynamicCullProxy(), and WGEGroupNode::insert().

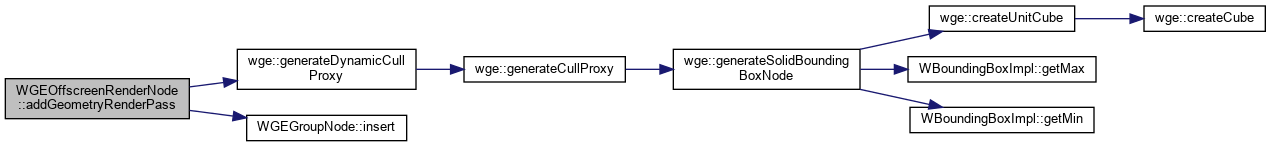

Here is the call graph for this function:

◆ addRenderPass()

template<typename T >

osg::ref_ptr< T > WGEOffscreenRenderNode::addRenderPass ( std::string name = "Unnamed" )

Creates a new offscreen-render-pass coupled with the reference camera.

This pass actually does nothing. The method is useful for custom variants of WGEOffscreenRenderPass.

Parameters

name	the name of the render pass. You should specify it to enable the nice debugging feature of WGETextureHud.

Returns: new instance of a plain render pass

Template Parameters

T	the type of pass to create.

Definition at line 246 of file WGEOffscreenRenderNode.h.

References WGEGroupNode::insert(), m_forceViewportTextureSize, m_hud, m_nextPassNum, m_referenceCamera, m_textureHeight, and m_textureWidth.

Here is the call graph for this function:

◆ addTextureProcessingPass() [1/2]

osg::ref_ptr< WGEOffscreenTexturePass > WGEOffscreenRenderNode::addTextureProcessingPass	(	osg::ref_ptr< WGEShader >	shader,
		std::string	name = `"Unnamed"`
	)

virtual

Creates a new offscreen-render-pass coupled with the reference camera which simply processes textures.

All the in- and output textures have to be specified manually.

Note: never forget to remove the returned node if not used anymore or use WGEGroup::clean.

Parameters

name	the name of the render pass. You should specify it to enable the nice debugging feature of WGETextureHud.
shader	the shader to add.

Returns: the texture processing pass created.

Definition at line 112 of file WGEOffscreenRenderNode.cpp.

◆ addTextureProcessingPass() [2/2]

osg::ref_ptr< WGEOffscreenTexturePass > WGEOffscreenRenderNode::addTextureProcessingPass ( std::string name = "Unnamed" )

virtual

Creates a new offscreen-render-pass coupled with the reference camera which simply processes textures.

All the in- and output textures have to be specified manually.

Note: never forget to remove the returned node if not used anymore or use WGEGroup::clean.

Parameters

name	the name of the render pass. You should specify it to enable the nice debugging feature of WGETextureHud.

Returns: the texture processing pass created.

Definition at line 106 of file WGEOffscreenRenderNode.cpp.

◆ getLinkViewportToTextureSize()

bool WGEOffscreenRenderNode::getLinkViewportToTextureSize ( ) const

The flag denotes whether the viewport is linked to the texture size or the reference camera.

See setLinkViewportToTextureSize for details.

Returns: the flag.

Definition at line 152 of file WGEOffscreenRenderNode.cpp.

References m_forceViewportTextureSize.

◆ getTextureHeight()

size_t WGEOffscreenRenderNode::getTextureHeight ( ) const

Get FBO texture height.

Returns: the height

Definition at line 142 of file WGEOffscreenRenderNode.cpp.

References m_textureHeight.

◆ getTextureHUD()

osg::ref_ptr< WGETextureHud > WGEOffscreenRenderNode::getTextureHUD ( ) const

Returns the instance of the texture HUD.

Returns: the HUD

Definition at line 132 of file WGEOffscreenRenderNode.cpp.

References m_hud.

◆ getTextureWidth()

size_t WGEOffscreenRenderNode::getTextureWidth ( ) const

Get FBO texture width.

Returns: the width

Definition at line 137 of file WGEOffscreenRenderNode.cpp.

References m_textureWidth.

◆ setLinkViewportToTextureSize()

void WGEOffscreenRenderNode::setLinkViewportToTextureSize ( bool vp = true )

If true, the viewport has the size of the resulting texture.

This is very interesting if you want to force large scale renderings and want to decouple your offscreen pass from the reference camera viewport.

Parameters

vp	if true, viewport is forced to be the whole texture size

Definition at line 147 of file WGEOffscreenRenderNode.cpp.

References m_forceViewportTextureSize.

Member Data Documentation

◆ m_forceViewportTextureSize

bool WGEOffscreenRenderNode::m_forceViewportTextureSize

private

Flag denotes whether the viewport is coupled to the reference camera or the texture size.

Definition at line 242 of file WGEOffscreenRenderNode.h.

Referenced by addRenderPass(), getLinkViewportToTextureSize(), and setLinkViewportToTextureSize().

◆ m_hud

osg::ref_ptr< WGETextureHud > WGEOffscreenRenderNode::m_hud

private

The pointer to the hud used to render all used texture buffers.

This can be NULL. It gets distributed to all created render-pass instances.

Definition at line 222 of file WGEOffscreenRenderNode.h.

Referenced by addRenderPass(), getTextureHUD(), and WGEOffscreenRenderNode().

◆ m_nextPassNum

size_t WGEOffscreenRenderNode::m_nextPassNum

private

The number of the next pass getting added.

Definition at line 237 of file WGEOffscreenRenderNode.h.

Referenced by addRenderPass().

◆ m_referenceCamera

osg::ref_ptr< WGECamera > WGEOffscreenRenderNode::m_referenceCamera

private

The camera to which is used for setting this camera up.

Definition at line 216 of file WGEOffscreenRenderNode.h.

Referenced by addRenderPass(), and WGEOffscreenRenderNode().

◆ m_textureHeight

size_t WGEOffscreenRenderNode::m_textureHeight

private

The height of each texture in this offscreen rendering.

Definition at line 232 of file WGEOffscreenRenderNode.h.

Referenced by addRenderPass(), and getTextureHeight().

◆ m_textureWidth

size_t WGEOffscreenRenderNode::m_textureWidth

private

The width of each texture in this offscreen rendering.

Definition at line 227 of file WGEOffscreenRenderNode.h.

Referenced by addRenderPass(), and getTextureWidth().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ConstRefPtr

◆ RefPtr

Constructor & Destructor Documentation

◆ WGEOffscreenRenderNode()

◆ ~WGEOffscreenRenderNode()

Member Function Documentation

◆ addFinalOnScreenPass() [1/2]

◆ addFinalOnScreenPass() [2/2]

◆ addGeometryRenderPass() [1/2]

◆ addGeometryRenderPass() [2/2]

◆ addRenderPass()

◆ addTextureProcessingPass() [1/2]

◆ addTextureProcessingPass() [2/2]

◆ getLinkViewportToTextureSize()

◆ getTextureHeight()

◆ getTextureHUD()

◆ getTextureWidth()

◆ setLinkViewportToTextureSize()

Member Data Documentation

◆ m_forceViewportTextureSize

◆ m_hud

◆ m_nextPassNum

◆ m_referenceCamera

◆ m_textureHeight

◆ m_textureWidth
