A named property class with a concrete type. More...

#include <WPropertyVariable.h>

Inheritance diagram for WPropertyVariable< T >:

Collaboration diagram for WPropertyVariable< T >:

Classes
class	PropertyConstraint
	Class building the base for user defined constraints on a property instance. More...

Public Types
typedef std::shared_ptr< WPropertyVariable< T > >	SPtr
	Convenience typedef for a shared_ptr of WPropertyVariable. More...

typedef std::shared_ptr< const WPropertyVariable< T > >	ConstSPtr
	Convenience typedef for a shared_ptr of const WPropertyVariable. More...

typedef T	DataType
	The type of the data of this property. More...

typedef WSharedAssociativeContainer< std::set< std::shared_ptr< PropertyConstraint > > >	ConstraintContainerType
	The alias for a shared container. More...

typedef std::shared_ptr< WPropertyConstraintMin< T > >	PropertyConstraintMin
	Alias for min constraints. More...

typedef std::shared_ptr< WPropertyConstraintMax< T > >	PropertyConstraintMax
	Alias for max constraints. More...

Public Types inherited from WFlag< T >
typedef T	ValueType
	The type for later access. More...

typedef std::shared_ptr< WFlag< T > >	SPtr
	Convenience typedef for a std::shared_ptr. More...

typedef std::shared_ptr< const WFlag< T > >	ConstSPtr
	Convenience typedef for a std::shared_ptr. More...

Public Types inherited from WPropertyBase
typedef std::shared_ptr< WPropertyBase >	SPtr
	Convenience typedef for a std::shared_ptr< WPropertyBase > More...

typedef std::shared_ptr< const WPropertyBase >	ConstSPtr
	Convenience typedef for a std::shared_ptr< const WPropertyBase > More...

typedef boost::function< void(std::shared_ptr< WPropertyBase >)>	PropertyChangeNotifierType
	Signal signature emitted during set operations. More...

Public Member Functions
	WPropertyVariable (std::string name, std::string description, const T &initial)
	Create an empty instance just containing a name. More...

	WPropertyVariable (std::string name, std::string description, const T &initial, std::shared_ptr< WCondition > condition)
	Create an empty instance just containing a name. More...

	WPropertyVariable (std::string name, std::string description, const T &initial, PropertyChangeNotifierType notifier)
	Create an empty instance just containing a name. More...

	WPropertyVariable (std::string name, std::string description, const T &initial, std::shared_ptr< WCondition > condition, PropertyChangeNotifierType notifier)
	Create an empty instance just containing a name. More...

	WPropertyVariable (const WPropertyVariable< T > &from)
	Copy constructor. More...

virtual	~WPropertyVariable ()
	Destructor. More...

virtual std::shared_ptr< WPropertyBase >	clone ()
	This method clones a property and returns the clone. More...

virtual bool	accept (const T &newValue)
	Determines whether the specified value is acceptable. More...

virtual bool	ensureValidity (const T &newValidValue, bool suppressNotification=false)
	This method is useful to ensure, that there is a valid value in the property. More...

void	addConstraint (std::shared_ptr< PropertyConstraint > constraint)
	Add a new constraint. More...

ConstraintContainerType	getConstraints ()
	Returns all the current constraints of a WPropertyVariable. More...

std::shared_ptr< WCondition >	getContraintsChangedCondition ()
	Gets the condition, which gets notified whenever the list of constraints changes. More...

PropertyConstraintMin	setMin (const T &min)
	Set a minimum constraint. More...

PropertyConstraintMax	setMax (const T &max)
	Set a maximum constraint. More...

PropertyConstraintMin	getMin ()
	Gets the current minimum constraint value. More...

PropertyConstraintMax	getMax ()
	Gets the current maximum constraint value. More...

void	replaceConstraint (std::shared_ptr< PropertyConstraint > constraint, PROPERTYCONSTRAINT_TYPE type)
	This replaces all existing constraints of a certain type by a new specified constraint. More...

std::shared_ptr< PropertyConstraint >	replaceConstraint (PROPERTYCONSTRAINT_TYPE constraint, PROPERTYCONSTRAINT_TYPE type)
	This replaces all existing constraints of a certain type by a new specified constraint. More...

void	removeConstraint (PROPERTYCONSTRAINT_TYPE type)
	Cleans list of constraints from all existing constrains of the specified type. More...

void	removeConstraint (std::shared_ptr< PropertyConstraint > constraint)
	Removes the specified constraint if existent. More...

std::shared_ptr< PropertyConstraint >	getFirstConstraint (PROPERTYCONSTRAINT_TYPE type)
	Method searching the first appearance of a constrained with the specified type. More...

int	countConstraint (PROPERTYCONSTRAINT_TYPE type)
	Method searching the first appearance of a constrained with the specified type. More...

virtual bool	setAsString (std::string value)
	This methods allows properties to be set by a string value. More...

virtual std::string	getAsString ()
	Returns the current value as a string. More...

virtual bool	set (std::shared_ptr< WPropertyBase > value, bool recommendedOnly=false)
	Sets the value from the specified property to this one. More...

virtual bool	set (const T &value, bool suppressNotification=false)
	Sets the new value for this flag. More...

virtual bool	setRecommendedValue (const T &value)
	Sets the specified value as recommended value. More...

Public Member Functions inherited from WFlag< T >
	WFlag (WCondition *condition, const T &initial)
	Constructor. More...

	WFlag (std::shared_ptr< WCondition > condition, const T &initial)
	Constructor. More...

	WFlag (const WFlag &from)
	Copy constructor. More...

virtual	~WFlag ()
	Destructor. More...

virtual const T &	get (bool resetChangeState=false)
	Operator returns value of the flag. More...

virtual const T &	get () const
	Operator returns value of the flag. More...

virtual const T &	operator() () const
	Operator returns value of the flag. More...

virtual	operator T () const
	Operator returns value of the flag. More...

virtual void	wait () const
	Wait for the flag to change its value. More...

virtual void	operator() (const T &value)
	Sets the new value for this flag. More...

std::shared_ptr< WCondition >	getCondition ()
	Returns the condition that is used by this flag. More...

std::shared_ptr< WCondition >	getValueChangeCondition ()
	Returns the condition denoting a value change. More...

virtual bool	isValid ()
	Tests whether a flag is currently valid. More...

virtual bool	changed (bool reset=false)
	True whenever the value inside this flag has changed since the last reset. More...

Public Member Functions inherited from WPropertyBase
	WPropertyBase (std::string name, std::string description)
	Create an empty named property. More...

	WPropertyBase (const WPropertyBase &from)
	Copy constructor. More...

virtual	~WPropertyBase ()
	Destructor. More...

std::string	getName () const
	Gets the name of the class. More...

std::string	getDescription () const
	Gets the description of the property. More...

bool	isHidden () const
	Determines whether the property is hidden or not. More...

void	setHidden (bool hidden=true)
	Sets the property hidden. More...

virtual PROPERTY_TYPE	getType () const
	Gets the real WPropertyVariable type of this instance. More...

virtual PROPERTY_PURPOSE	getPurpose () const
	Gets the purpose of a property. More...

virtual void	setPurpose (PROPERTY_PURPOSE purpose)
	Sets the purpose of the property. More...

template<typename T >
bool	set (const T &value)
	Shortcut to set a property with a given value. More...

virtual std::shared_ptr< WCondition >	getUpdateCondition () const
	This method returns a condition which gets fired whenever the property changes somehow. More...

WPropInt	toPropInt ()
	Helper converts this instance to its native type. More...

WPropDouble	toPropDouble ()
	Helper converts this instance to its native type. More...

WPropBool	toPropBool ()
	Helper converts this instance to its native type. More...

WPropString	toPropString ()
	Helper converts this instance to its native type. More...

WPropFilename	toPropFilename ()
	Helper converts this instance to its native type. More...

WPropSelection	toPropSelection ()
	Helper converts this instance to its native type. More...

WPropColor	toPropColor ()
	Helper converts this instance to its native type. More...

WPropPosition	toPropPosition ()
	Helper converts this instance to its native type. More...

WPropTrigger	toPropTrigger ()
	Helper converts this instance to its native type. More...

WPropMatrix4X4	toPropMatrix4X4 ()
	Helper converts this instance to its native type. More...

WPropTransferFunction	toPropTransferFunction ()
	Helper converts this instance to its native type. More...

WPropGroup	toPropGroup ()
	Helper converts this instance to its native type. More...

WPropInterval	toPropInterval ()
	Helper converts this instance to its native type. More...

std::shared_ptr< WPropertyGroupBase >	toPropGroupBase ()
	Convert the property to a WPropertyGroupBase. More...

template<typename T >
std::shared_ptr< WPropertyVariable< T > >	toPropertyVariable ()
	Helper converts this instance to an arbitrary type. More...

Static Public Member Functions
static PropertyConstraintMin	minConstraint (const T &min)
	Creates a new WPropertyConstraintMin for this WPropertyVariable. More...

static PropertyConstraintMax	maxConstraint (const T &max)
	Creates a new WPropertyConstraintMax for this WPropertyVariable. More...

Protected Member Functions
virtual void	updateType ()
	Uses typeid() to set the proper type constant. More...

void	removeConstraints (PROPERTYCONSTRAINT_TYPE type, typename WPropertyVariable< T >::ConstraintContainerType::WriteTicket ticket=ConstraintContainerType::WriteTicket())
	Cleans list of constraints from all existing constrains of the specified type. More...

void	propertyChangeNotifier ()
	This method gets called by WFlag whenever the value of the property changes. More...

Protected Attributes
boost::signals2::connection	m_notifierConnection
	The connection used for notification. More...

std::shared_ptr< ConstraintContainerType >	m_constraints
	A set of constraints applied on this property. More...

Protected Attributes inherited from WFlag< T >
std::shared_ptr< WCondition >	m_condition
	The condition to be used for waiting/notifying. More...

std::shared_ptr< WCondition >	m_valueChangeCondition
	This condition is fired whenever the value changes. More...

T	m_flag
	The flag value. More...

bool	m_changed
	Denotes whether the value has changed since the last reset. More...

Protected Attributes inherited from WPropertyBase
std::string	m_name
	Name of the property. More...

std::string	m_description
	Description of the property. More...

bool	m_hidden
	Flag denoting whether the property is hidden or not. More...

PROPERTY_TYPE	m_type
	Type of the PropertyVariable instance. More...

PROPERTY_PURPOSE	m_purpose
	The purpose of this property. More...

PropertyChangeSignalType	signal_PropertyChange
	Signal getting fired whenever the property changes. More...

std::shared_ptr< WConditionSet >	m_updateCondition
	Condition notified whenever something changes. More...

Private Attributes
bool	m_notYetSet
	This is true, if the user did not set a value until now using set. More...

Friends
class	WPropertyVariableTest
	Access for test class. More...

Additional Inherited Members
Protected Types inherited from WPropertyBase
typedef boost::signals2::signal< void(std::shared_ptr< WPropertyBase >)>	PropertyChangeSignalType
	Signal used for firing change signals. More...

Detailed Description

template<typename T>
class WPropertyVariable< T >

A named property class with a concrete type.

Definition at line 54 of file WPropertyVariable.h.

Member Typedef Documentation

◆ ConstraintContainerType

template<typename T >

typedef WSharedAssociativeContainer< std::set< std::shared_ptr< PropertyConstraint > > > WPropertyVariable< T >::ConstraintContainerType

The alias for a shared container.

Definition at line 227 of file WPropertyVariable.h.

◆ ConstSPtr

template<typename T >

typedef std::shared_ptr< const WPropertyVariable< T > > WPropertyVariable< T >::ConstSPtr

Convenience typedef for a shared_ptr of const WPropertyVariable.

Definition at line 67 of file WPropertyVariable.h.

◆ DataType

template<typename T >

typedef T WPropertyVariable< T >::DataType

The type of the data of this property.

Definition at line 70 of file WPropertyVariable.h.

◆ PropertyConstraintMax

template<typename T >

typedef std::shared_ptr< WPropertyConstraintMax< T > > WPropertyVariable< T >::PropertyConstraintMax

Alias for max constraints.

It is an alias for convenience.

Definition at line 237 of file WPropertyVariable.h.

◆ PropertyConstraintMin

template<typename T >

typedef std::shared_ptr< WPropertyConstraintMin< T > > WPropertyVariable< T >::PropertyConstraintMin

Alias for min constraints.

It is an alias for convenience.

Definition at line 232 of file WPropertyVariable.h.

◆ SPtr

template<typename T >

typedef std::shared_ptr< WPropertyVariable< T > > WPropertyVariable< T >::SPtr

Convenience typedef for a shared_ptr of WPropertyVariable.

Definition at line 62 of file WPropertyVariable.h.

Constructor & Destructor Documentation

◆ WPropertyVariable() [1/5]

template<typename T >

WPropertyVariable< T >::WPropertyVariable	(	std::string	name,
		std::string	description,
		const T &	initial
	)

Create an empty instance just containing a name.

Parameters

name	the property name
description	the property description
initial	the initial value

Definition at line 453 of file WPropertyVariable.h.

References WPropertyVariable< T >::m_constraints, WPropertyBase::m_updateCondition, and WPropertyVariable< T >::updateType().

Here is the call graph for this function:

◆ WPropertyVariable() [2/5]

template<typename T >

WPropertyVariable< T >::WPropertyVariable	(	std::string	name,
		std::string	description,
		const T &	initial,
		std::shared_ptr< WCondition >	condition
	)

Create an empty instance just containing a name.

This constructor allows an external condition to be used for notifiaction. This is practical if one would like to share a condition among several properties.

Parameters

name	the property name
description	the property description
initial	the initial value
condition	use this external condition for notification.

Definition at line 467 of file WPropertyVariable.h.

References WPropertyVariable< T >::m_constraints, WPropertyBase::m_updateCondition, and WPropertyVariable< T >::updateType().

Here is the call graph for this function:

◆ WPropertyVariable() [3/5]

template<typename T >

WPropertyVariable< T >::WPropertyVariable	(	std::string	name,
		std::string	description,
		const T &	initial,
		PropertyChangeNotifierType	notifier
	)

Create an empty instance just containing a name.

This constructor allows an external callback to be used for notification.

Parameters

name	the property name
description	the property description
initial	the initial value
notifier	use this notifier for change callbacks.

Note: : instead of setting another notifier, you should consider using the callbacks the condition offers.; : the notifiers gets connected to the notification callback of the internal condition. So be careful when using the condition ( getCondition() ) for other properties, since they would also share the callbacks

Definition at line 481 of file WPropertyVariable.h.

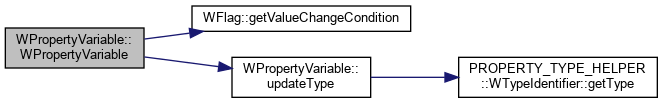

References WFlag< T >::getValueChangeCondition(), WPropertyVariable< T >::m_constraints, WPropertyVariable< T >::m_notifierConnection, WPropertyBase::m_updateCondition, WPropertyBase::signal_PropertyChange, and WPropertyVariable< T >::updateType().

Here is the call graph for this function:

◆ WPropertyVariable() [4/5]

template<typename T >

WPropertyVariable< T >::WPropertyVariable	(	std::string	name,
		std::string	description,
		const T &	initial,
		std::shared_ptr< WCondition >	condition,
		PropertyChangeNotifierType	notifier
	)

Create an empty instance just containing a name.

This constructor allows an external callback and condition to be used for notification.

Parameters

name	the property name
description	the property description
initial	the initial value
notifier	use this notifier for change callbacks.
condition	use this external condition for notification

Note: : instead of setting another notifier, you should consider using the callbacks the condition offers.; : the notifiers gets connected to the notification callback of the internal condition. So be careful when using the condition ( getCondition() ) for other properties, since they would also share the callbacks

Definition at line 502 of file WPropertyVariable.h.

References WFlag< T >::getValueChangeCondition(), WPropertyVariable< T >::m_constraints, WPropertyVariable< T >::m_notifierConnection, WPropertyBase::m_updateCondition, WPropertyBase::signal_PropertyChange, and WPropertyVariable< T >::updateType().

Here is the call graph for this function:

◆ WPropertyVariable() [5/5]

template<typename T >

WPropertyVariable< T >::WPropertyVariable ( const WPropertyVariable< T > & from )

explicit

Copy constructor.

Creates a deep copy of this property. As boost::signals2 and condition variables are non-copyable, new instances get created. The subscriptions to a signal are LOST as well as all listeners to a condition. The conditions you can grab using getValueChangeConditon and getCondition are not the same as in the original! This is because the class corresponds to the observer/observable pattern. You won't expect a clone to fire a condition if a original variable is changed (which after cloning is completely decoupled from the clone).

Parameters

from	the instance to copy.

Definition at line 523 of file WPropertyVariable.h.

References WFlag< T >::get(), WPropertyVariable< T >::m_constraints, and WPropertyBase::m_updateCondition.

Here is the call graph for this function:

◆ ~WPropertyVariable()

template<typename T >

WPropertyVariable< T >::~WPropertyVariable

virtual

Destructor.

Definition at line 551 of file WPropertyVariable.h.

References WFlag< T >::get().

Here is the call graph for this function:

Member Function Documentation

◆ accept()

template<typename T >

bool WPropertyVariable< T >::accept ( const T & newValue )

virtual

Determines whether the specified value is acceptable.

Parameters

newValue the new value.

Returns: true if it is a valid/acceptable value.

Reimplemented from WFlag< T >.

Definition at line 578 of file WPropertyVariable.h.

References WFlag< T >::accept(), and WFlag< T >::get().

Here is the call graph for this function:

◆ addConstraint()

template<typename T >

void WPropertyVariable< T >::addConstraint ( std::shared_ptr< PropertyConstraint > constraint )

Add a new constraint.

This is useful to disallow several (custom) values for this property.

Parameters

constraint the new constraint.

Definition at line 678 of file WPropertyVariable.h.

References WFlag< T >::get().

Here is the call graph for this function:

◆ clone()

template<typename T >

std::shared_ptr< WPropertyBase > WPropertyVariable< T >::clone

virtual

This method clones a property and returns the clone.

It does a deep copy and, in contrast to a copy constructor, creates property with the correct type without explicitly requiring the user to specify it. It creates a NEW change condition and change signal. This means, alls subscribed signal handlers are NOT copied.

Note: this simply ensures the copy constructor of the runtime type is issued.

Returns: the deep clone of this property.

Implements WPropertyBase.

Definition at line 565 of file WPropertyVariable.h.

◆ countConstraint()

template<typename T >

int WPropertyVariable< T >::countConstraint ( PROPERTYCONSTRAINT_TYPE type )

Method searching the first appearance of a constrained with the specified type.

Parameters

type	the type of the searched constraint

Returns: the constraint, or NULL if none.

Definition at line 768 of file WPropertyVariable.h.

References WFlag< T >::get().

Here is the call graph for this function:

◆ ensureValidity()

template<typename T >

bool WPropertyVariable< T >::ensureValidity	(	const T &	newValidValue,
		bool	suppressNotification = `false`
	)

virtual

This method is useful to ensure, that there is a valid value in the property.

Assume the following situation. The property p got a min value of 10. p->setMin( 10 ). Now, p gets set by the GUI to 11. Now your module sets another min value: p->setMin( 15 ). As the property already has been set, the property can't decide what to do; it simply stays invalid. To ensure a valid value, you can use this method. It only sets the new value if the old value is invalid.

Parameters

newValidValue	the new value to set.
suppressNotification	true to avoid a firing condition.

Returns: true if the new value has been accepted ( if it was valid ) - for short true if the property NOW is valid

Definition at line 665 of file WPropertyVariable.h.

References WFlag< T >::set().

Here is the call graph for this function:

◆ getAsString()

template<typename T >

std::string WPropertyVariable< T >::getAsString

virtual

Returns the current value as a string.

This is useful for debugging or project files. It is not implemented as << operator, since the << should also print min/max constraints and so on. This simply is the value.

Returns: the value as a string.

Implements WPropertyBase.

Definition at line 609 of file WPropertyVariable.h.

References PROPERTY_TYPE_HELPER::WStringConversion< T >::asString().

Here is the call graph for this function:

◆ getConstraints()

template<typename T >

WPropertyVariable< T >::ConstraintContainerType WPropertyVariable< T >::getConstraints

Returns all the current constraints of a WPropertyVariable.

They can be iterated using the provided access object.

Returns: the constraint access object

Definition at line 817 of file WPropertyVariable.h.

◆ getContraintsChangedCondition()

template<typename T >

std::shared_ptr< WCondition > WPropertyVariable< T >::getContraintsChangedCondition

Gets the condition, which gets notified whenever the list of constraints changes.

It is notified AFTER the write lock has been released so a read lock can be acquired in the callback.

Returns: the condition.

Definition at line 689 of file WPropertyVariable.h.

◆ getFirstConstraint()

template<typename T >

std::shared_ptr< typename WPropertyVariable< T >::PropertyConstraint > WPropertyVariable< T >::getFirstConstraint ( PROPERTYCONSTRAINT_TYPE type )

Method searching the first appearance of a constrained with the specified type.

Parameters

type	the type of the searched constraint

Returns: the constraint, or NULL if none.

Definition at line 750 of file WPropertyVariable.h.

References WFlag< T >::get().

Referenced by WPropertyVariableTest::testConstraintManagement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getMax()

template<typename T >

std::shared_ptr< WPropertyConstraintMax< T > > WPropertyVariable< T >::getMax

Gets the current maximum constraint value.

Returns: the maximum constraint, or NULL if none.

Definition at line 802 of file WPropertyVariable.h.

Referenced by WPropertyVariableTest::testMinMaxWithSetAndAccept().

Here is the caller graph for this function:

◆ getMin()

template<typename T >

std::shared_ptr< WPropertyConstraintMin< T > > WPropertyVariable< T >::getMin

Gets the current minimum constraint value.

Returns: the minimum constraint, or NULL if none.

Definition at line 787 of file WPropertyVariable.h.

◆ maxConstraint()

template<typename T >

std::shared_ptr< WPropertyConstraintMax< T > > WPropertyVariable< T >::maxConstraint ( const T & max )

static

Creates a new WPropertyConstraintMax for this WPropertyVariable.

Parameters

max	the maximum value of the property

Returns: the new constraint.

Definition at line 708 of file WPropertyVariable.h.

◆ minConstraint()

template<typename T >

std::shared_ptr< WPropertyConstraintMin< T > > WPropertyVariable< T >::minConstraint ( const T & min )

static

Creates a new WPropertyConstraintMin for this WPropertyVariable.

Parameters

min	the minimum value.

Returns: the new constraint.

Definition at line 702 of file WPropertyVariable.h.

◆ propertyChangeNotifier()

template<typename T >

void WPropertyVariable< T >::propertyChangeNotifier

protected

This method gets called by WFlag whenever the value of the property changes.

It re-emits the signal with a this pointer

Definition at line 571 of file WPropertyVariable.h.

◆ removeConstraint() [1/2]

template<typename T >

void WPropertyVariable< T >::removeConstraint ( PROPERTYCONSTRAINT_TYPE type )

Cleans list of constraints from all existing constrains of the specified type.

Parameters

type	the type to remove.

Definition at line 866 of file WPropertyVariable.h.

◆ removeConstraint() [2/2]

template<typename T >

void WPropertyVariable< T >::removeConstraint ( std::shared_ptr< PropertyConstraint > constraint )

Removes the specified constraint if existent.

Parameters

constraint the constraint to remove.

Definition at line 873 of file WPropertyVariable.h.

References WFlag< T >::get().

Here is the call graph for this function:

◆ removeConstraints()

template<typename T >

void WPropertyVariable< T >::removeConstraints	(	PROPERTYCONSTRAINT_TYPE	type,
		typename WPropertyVariable< T >::ConstraintContainerType::WriteTicket	ticket = `ConstraintContainerType::WriteTicket()`
	)

protected

Cleans list of constraints from all existing constrains of the specified type.

Parameters

type	the type to remove.
ticket	the write ticket if already existent.

Definition at line 823 of file WPropertyVariable.h.

References WFlag< T >::get().

Here is the call graph for this function:

◆ replaceConstraint() [1/2]

template<typename T >

std::shared_ptr< typename WPropertyVariable< T >::PropertyConstraint > WPropertyVariable< T >::replaceConstraint	(	PROPERTYCONSTRAINT_TYPE	constraint,
		PROPERTYCONSTRAINT_TYPE	type
	)

This replaces all existing constraints of a certain type by a new specified constraint.

Parameters

constraint	the new constraint
type	the type of constraints to replace

Returns: the constraint created

Definition at line 741 of file WPropertyVariable.h.

◆ replaceConstraint() [2/2]

template<typename T >

void WPropertyVariable< T >::replaceConstraint	(	std::shared_ptr< PropertyConstraint >	constraint,
		PROPERTYCONSTRAINT_TYPE	type
	)

This replaces all existing constraints of a certain type by a new specified constraint.

Parameters

constraint	the new constraint
type	the type of constraints to replace

Definition at line 730 of file WPropertyVariable.h.

References WFlag< T >::get().

Here is the call graph for this function:

◆ set() [1/2]

template<typename T >

bool WPropertyVariable< T >::set	(	const T &	value,
		bool	suppressNotification = `false`
	)

virtual

Sets the new value for this flag.

Also notifies waiting threads. After setting a value, changed() will be true.

Parameters

value	the new value
suppressNotification	true to avoid a firing condition. This is useful for resetting values.

Returns: true if the value has been set successfully.

Note: set( get() ) == true; this is defined here to help the compiler to disambiguate between WFlag::set and the WPropertyBase::set.

Reimplemented from WFlag< T >.

Definition at line 642 of file WPropertyVariable.h.

References WFlag< T >::set().

Here is the call graph for this function:

◆ set() [2/2]

template<typename T >

bool WPropertyVariable< T >::set	(	std::shared_ptr< WPropertyBase >	value,
		bool	recommendedOnly = `false`
	)

virtual

Sets the value from the specified property to this one.

This is especially useful to copy a value without explicitly casting/knowing the dynamic type of the property.

Parameters

value	the new value.
recommendedOnly	if true, property types which support recommended values apply the given value as recommendation.

Returns: true if the value has been accepted.

Implements WPropertyBase.

Definition at line 620 of file WPropertyVariable.h.

◆ setAsString()

template<typename T >

bool WPropertyVariable< T >::setAsString ( std::string value )

virtual

This methods allows properties to be set by a string value.

This is especially useful when a property is only available as string and the real type of the property is unknown. This is a shortcut for casting the property and then setting the lexically casted value.

Parameters

value the new value to set.

Returns: true if value could be set.

Implements WPropertyBase.

Definition at line 594 of file WPropertyVariable.h.

References PROPERTY_TYPE_HELPER::WStringConversion< T >::create().

Here is the call graph for this function:

◆ setMax()

template<typename T >

std::shared_ptr< WPropertyConstraintMax< T > > WPropertyVariable< T >::setMax ( const T & max )

Set a maximum constraint.

Parameters

max	the maximum value allowed.

Returns: the newly created constraint.

Definition at line 722 of file WPropertyVariable.h.

Referenced by WPropertyVariableTest::testMinMaxWithSetAndAccept().

Here is the caller graph for this function:

◆ setMin()

template<typename T >

std::shared_ptr< WPropertyConstraintMin< T > > WPropertyVariable< T >::setMin ( const T & min )

Set a minimum constraint.

Parameters

min	the minimum value allowed.

Returns: the newly created constraint.

Definition at line 714 of file WPropertyVariable.h.

◆ setRecommendedValue()

template<typename T >

bool WPropertyVariable< T >::setRecommendedValue ( const T & value )

virtual

Sets the specified value as recommended value.

The difference to set is simple. If some value was set using the method set earlier, the setRecommendedValue call is ignored. This is very useful in modules, where incoming data yields some useful default values but you do not want to overwrite a user-value which might have been set.

Parameters

value the new value to set if the user did not yet set the value

Returns: true if value has been set successfully.

Definition at line 649 of file WPropertyVariable.h.

◆ updateType()

template<typename T >

void WPropertyVariable< T >::updateType

protectedvirtual

Uses typeid() to set the proper type constant.

Reimplemented from WPropertyBase.

Definition at line 695 of file WPropertyVariable.h.

References PROPERTY_TYPE_HELPER::WTypeIdentifier< T >::getType().

Referenced by WPropertyVariable< T >::WPropertyVariable().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ WPropertyVariableTest

template<typename T >

friend class WPropertyVariableTest

friend

Access for test class.

Definition at line 57 of file WPropertyVariable.h.

Member Data Documentation

◆ m_constraints

template<typename T >

std::shared_ptr< ConstraintContainerType > WPropertyVariable< T >::m_constraints

protected

A set of constraints applied on this property.

Definition at line 443 of file WPropertyVariable.h.

Referenced by WPropertyVariable< T >::WPropertyVariable().

◆ m_notifierConnection

template<typename T >

boost::signals2::connection WPropertyVariable< T >::m_notifierConnection

protected

The connection used for notification.

Definition at line 418 of file WPropertyVariable.h.

Referenced by WPropertyVariable< T >::WPropertyVariable().

◆ m_notYetSet

template<typename T >

bool WPropertyVariable< T >::m_notYetSet

private

This is true, if the user did not set a value until now using set.

Definition at line 449 of file WPropertyVariable.h.

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Friends

Additional Inherited Members

Detailed Description

template<typename T> class WPropertyVariable< T >

Member Typedef Documentation

◆ ConstraintContainerType

◆ ConstSPtr

◆ DataType

◆ PropertyConstraintMax

◆ PropertyConstraintMin

◆ SPtr

Constructor & Destructor Documentation

◆ WPropertyVariable() [1/5]

◆ WPropertyVariable() [2/5]

◆ WPropertyVariable() [3/5]

◆ WPropertyVariable() [4/5]

◆ WPropertyVariable() [5/5]

◆ ~WPropertyVariable()

Member Function Documentation

◆ accept()

◆ addConstraint()

◆ clone()

◆ countConstraint()

◆ ensureValidity()

◆ getAsString()

◆ getConstraints()

◆ getContraintsChangedCondition()

◆ getFirstConstraint()

◆ getMax()

◆ getMin()

◆ maxConstraint()

◆ minConstraint()

◆ propertyChangeNotifier()

◆ removeConstraint() [1/2]

◆ removeConstraint() [2/2]

◆ removeConstraints()

◆ replaceConstraint() [1/2]

◆ replaceConstraint() [2/2]

◆ set() [1/2]

◆ set() [2/2]

◆ setAsString()

◆ setMax()

◆ setMin()

◆ setRecommendedValue()

◆ updateType()

Friends And Related Function Documentation

◆ WPropertyVariableTest

Member Data Documentation

◆ m_constraints

◆ m_notifierConnection

◆ m_notYetSet

template<typename T>
class WPropertyVariable< T >
