Extend the wge utils namespace with additional methods relating WDataTexture3D. More...

Classes
class	UniformType
	Class helping to adapt types specified as template parameter into the best matching osg::Uniform (GLSL) type. More...

class	UniformType< double >
	Maps doubles to floats as only floats are allowed in uniforms. More...

class	UniformType< WVector3d >
	Maps WVector3d/WPosition to osg::Vec3. More...

class	UniformType< WMatrix4d >
	Maps WMatrix4d to osg::Matrixd. More...

class	UniformType< WItemSelector >
	Maps Selection Properties to ints. More...

class	UniformType< WIntervalDouble >
	Maps Selection Properties to ints. More...

class	GLType
	Class helping to adapt types specified as template parameter into the best matching OpenGL type. More...

class	GLType< double >
	Class helping to adapt types specified as template parameter into the best matching OpenGL type. More...

class	GLType< long double >
	Class helping to adapt types specified as template parameter into the best matching OpenGL type. More...

class	GLType< float >
	Class helping to adapt types specified as template parameter into the best matching OpenGL type. More...

class	GLType< int8_t >
	Class helping to adapt types specified as template parameter into the best matching OpenGL type. More...

class	GLType< uint8_t >
	Class helping to adapt types specified as template parameter into the best matching OpenGL type. More...

class	GLType< int16_t >
	Class helping to adapt types specified as template parameter into the best matching OpenGL type. More...

class	GLType< uint16_t >
	Class helping to adapt types specified as template parameter into the best matching OpenGL type. More...

class	GLType< int32_t >
	Class helping to adapt types specified as template parameter into the best matching OpenGL type. More...

class	GLType< uint32_t >
	Class helping to adapt types specified as template parameter into the best matching OpenGL type. More...

class	GLType< int64_t >
	Class helping to adapt types specified as template parameter into the best matching OpenGL type. More...

class	GLType< uint64_t >
	Class helping to adapt types specified as template parameter into the best matching OpenGL type. More...

Functions
void	bindTexture (osg::ref_ptr< osg::Node > node, osg::ref_ptr< WDataTexture3D > texture, size_t unit=0, std::string prefix="")
	Binds the specified texture to the specified unit. More...

osg::Vec2	toUniformType (const WIntervalDouble &in)
	Creates an OSG vec2 when an interval is inserted. More...

template<typename InType >
UniformType< InType >::Type	toUniformType (const InType &in)
	Create an instance of the uniform target type given some input type. More...

osg::ref_ptr< osg::Geode >	generateBoundingBoxGeode (const WBoundingBox &bb, const WColor &color)
	Generates an OSG geode for the bounding box. More...

osg::ref_ptr< osg::Node >	generateSolidBoundingBoxNode (const WBoundingBox &bb, const WColor &color, bool threeDTexCoords=true)
	Generates an OSG node for the specified bounding box. More...

osg::ref_ptr< osg::Geometry >	createUnitCube (const WColor &color)
	Creates a osg::Geometry containing an unit cube, having 3D texture coordinates. More...

void	createCube (osg::ref_ptr< osg::Geometry > geometry, const WPosition &position, const WPosition &size, const WColor &color)
	Create an arbitrary cube and insert it into the given geometry. More...

osg::ref_ptr< osg::Geometry >	createCube (const WPosition &position, const WPosition &size, const WColor &color)
	Create an arbitrary cube. More...

osg::ref_ptr< osg::Geometry >	createUnitCubeAsLines (const WColor &color, bool asLines=false)
	Creates a osg::Geometry containing an unit cube as line-strips, having 3D texture coordinates. More...

osg::ref_ptr< osg::Geometry >	convertToOsgGeometry (WTriangleMesh::SPtr mesh, const WColor &defaultColor=WColor(1.0, 1.0, 1.0, 1.0), bool includeNormals=false, bool lighting=false, bool useMeshColor=true)
	Extract the vertices and triangles from a WTriangleMesh and save them into an osg::Geometry. More...

osg::ref_ptr< osg::Geometry >	convertToOsgGeometryFlatShaded (WTriangleMesh::SPtr mesh, const WColor &defaultColor=WColor(1.0, 1.0, 1.0, 1.0), bool includeNormals=false, bool lighting=false, bool useMeshColor=true)
	Extract the vertices and triangles from a WTriangleMesh and save them into an osg::Geometry in order to produce a flat shaded rendering. More...

osg::ref_ptr< osg::Geometry >	convertToOsgGeometry (WTriangleMesh::SPtr mesh, const WColoredVertices &colorMap, const WColor &defaultColor=WColor(1.0, 1.0, 1.0, 1.0), bool includeNormals=false, bool lighting=false)
	Extract the vertices and triangles from a WTriangleMesh and save them into an osg::Geometry. More...

osg::ref_ptr< osg::Geometry >	convertToOsgGeometryLines (WTriangleMesh::SPtr mesh, const WColor &defaultColor=WColor(1.0, 1.0, 1.0, 1.0), bool useMeshColor=true)
	Convert triangle mesh to lines representing it. More...

osg::ref_ptr< osg::PositionAttitudeTransform >	addLabel (osg::Vec3 position, std::string text)
	helper function to add a label somewhere More...

osg::ref_ptr< osg::PositionAttitudeTransform >	vector2label (osg::Vec3 position)
	helper function to add a label with it's position vector More...

osg::ref_ptr< osg::Geode >	genFinitePlane (double xSize, double ySize, const WPlane &p, const WColor &color=WColor(0.0, 0.7, 0.7, 1.0), bool border=false)
	Generates a geode out of a Plane with a fixed size in direction of the vectors which span that plane. More...

osg::ref_ptr< osg::Group >	creatCoordinateSystem (osg::Vec3 middle, double sizeX, double sizeY, double sizeZ)
	Create a coordinate system. More...

osg::ref_ptr< osg::Geode >	genFinitePlane (osg::Vec3 const &base, osg::Vec3 const &a, osg::Vec3 const &b, const WColor &color=defaultColor::WHITE)
	Generates a geode out of two vectors and an origin position. More...

osg::ref_ptr< osg::Vec3Array >	generateCuboidQuads (const std::vector< WPosition > &corners)
	Creates out of eight corner vertices QUAD vertices. More...

osg::Vec3	getQuadNormal (const WPosition &a, const WPosition &b, const WPosition &c)
	Generates for a QUAD given via 3 three points ( the fourth is not needed ) the normal. More...

osg::ref_ptr< osg::Vec3Array >	generateCuboidQuadNormals (const std::vector< WPosition > &corners)
	Generates for all QUADS of the Cuboid the normals in the following order: More...

WTriangleMesh::SPtr	triangulate (const std::vector< WPosition > &points, double transformationFactor=0.0)
	Calculate the Delaunay Triangulation of the given points. More...

template<typename T >
void	bindTexture (osg::ref_ptr< osg::Node > node, osg::ref_ptr< T > texture, size_t unit=0, std::string prefix="")
	Binds the specified texture to the specified unit. More...

template<typename T >
void	bindTexture (osg::ref_ptr< osg::Node > node, osg::ref_ptr< WGETexture< T > > texture, size_t unit=0, std::string prefix="")
	Binds the specified texture to the specified unit. More...

void	unbindTexture (osg::ref_ptr< osg::Node > node, size_t unit, size_t count=1)
	Removes the binding associated with the specified unit. More...

size_t	getMaxTexUnits ()
	Returns the maximum number of textures that can be bound to a node. More...

osg::ref_ptr< WGETexture< osg::Texture1D > >	genWhiteNoiseTexture (size_t sizeX, size_t channels)
	This generates an 1D texture only containing white noise in its channels. More...

osg::ref_ptr< WGETexture< osg::Texture2D > >	genWhiteNoiseTexture (size_t sizeX, size_t sizeY, size_t channels)
	This generates an 2D texture only containing white noise in its channels. More...

osg::ref_ptr< WGETexture< osg::Texture3D > >	genWhiteNoiseTexture (size_t sizeX, size_t sizeY, size_t sizeZ, size_t channels)
	This generates an 3D texture only containing white noise in its channels. More...

osg::ref_ptr< osg::Image >	genWhiteNoiseImage (size_t sizeX, size_t sizeY, size_t sizeZ, size_t channels=1)
	Generates an image only containing white noise in its channels. More...

osg::ref_ptr< WGETexture< osg::Texture3D > >	genTuringNoiseTexture (std::size_t sizeX, std::size_t sizeY, std::size_t sizeZ, std::size_t channels=1)
	Generates a 3D turing noise texture. More...

void	enableTransparency (osg::ref_ptr< osg::Node > node)
	Enable transparency for the given node. More...

WColor	getRGBAColorFromDirection (const WPosition &pos1, const WPosition &pos2)
	Transforms a direction given via two points into a RGB color. More...

osg::ref_ptr< osg::Vec3Array >	osgVec3Array (const std::vector< WPosition > &posArray)
	Converts a whole vector of WPositions into an osg::Vec3Array. More...

osg::Vec3	unprojectFromScreen (const osg::Vec3 screen, osg::ref_ptr< WGECamera > camera)
	Converts screen coordinates into Camera coordinates. More...

osg::Vec4	unprojectFromScreen (const osg::Vec4 screen, osg::ref_ptr< WGECamera > camera)
	Converts screen coordinates into Camera coordinates. More...

WColor	createColorFromIndex (int index)
	creates the same color as the atlas colormap shader from the index More...

WColor	createColorFromHSV (int h, float s=1.0, float v=1.0)
	creates a rgb WColor from a HSV value More...

WColor	getNthHSVColor (int n)
	creates the nth color of a partition of the hsv color circle More...

template<typename T >
void	bindAsUniform (osg::Node *node, T prop, std::string name)
	Creates a osg::Uniform with given type and name and applies it to the given node. More...

osg::ref_ptr< osg::Node >	generateCullProxy (const WBoundingBox &bbox)
	Generate a proxy cube, which ensures OSG does proper near-far plane calculation and culling. More...

osg::ref_ptr< osg::Node >	generateDynamicCullProxy (osg::ref_ptr< osg::Node > node)
	Generate a proxy cube, which ensures OSG does proper near-far plane calculation and culling. More...

template<>
void	bindAsUniform< double > (osg::Node *node, double prop, std::string name)
	Template specialization for double values. More...

template<>
void	bindAsUniform< size_t > (osg::Node *node, size_t prop, std::string name)
	Template specialization for size_t values. More...

template<>
void	bindAsUniform< WPropDouble > (osg::Node *node, WPropDouble prop, std::string name)
	Template specialization for WPropDouble values. More...

template<>
void	bindAsUniform< WPropColor > (osg::Node *node, WPropColor prop, std::string name)
	Template specialization for WPropColor values. More...

template<>
void	bindAsUniform< WPropBool > (osg::Node *node, WPropBool prop, std::string name)
	Template specialization for WPropBool values. More...

template<>
void	bindAsUniform< WPropInt > (osg::Node *node, WPropInt prop, std::string name)
	Template specialization for WPropInt values. More...

template<>
void	bindAsUniform< osg::ref_ptr< osg::Uniform > > (osg::Node *node, osg::ref_ptr< osg::Uniform > uniform, std::string)
	Template specialization for osg::Uniform values. More...

Detailed Description

Extend the wge utils namespace with additional methods relating WDataTexture3D.

Convinient functions for use with the graphics engine of OpenWalnut.

ATM the namespace is filled by several files: WGEGeodeUtils, WGEGeometryUtils and WGEUtils.

Function Documentation

◆ addLabel()

osg::ref_ptr< osg::PositionAttitudeTransform > wge::addLabel	(	osg::Vec3	position,
		std::string	text
	)

helper function to add a label somewhere

Parameters

position	position of the label
text	text

Returns: a positionattitudetransfom object containing the label

Definition at line 595 of file WGEGeodeUtils.cpp.

References WPathHelper::getAllFonts().

Referenced by vector2label().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bindAsUniform()

template<typename T >

void wge::bindAsUniform	(	osg::Node *	node,
		T	prop,
		std::string	name
	)

inline

Creates a osg::Uniform with given type and name and applies it to the given node.

This is a shortcut for using WGEPropertyUniform in this way:

node->getOrCreateStateSet()->addUniform( new WGEPropertyUniform< T >( name, prop ) );

WGEPropertyUniform

Class implementing a uniform which can be controlled by a property instance.

Definition: WGEPropertyUniform.h:46

*

Template Parameters

T	This is the data used for the uniform. It may be a PropertyType, an integral or an osg::Uniform.

Parameters

node	Node where the uniform should be bound to.
prop	The type of the uniform.
name	The name of the uniform.

Definition at line 171 of file WGEUtils.h.

◆ bindAsUniform< double >()

template<>

void wge::bindAsUniform< double >	(	osg::Node *	node,
		double	prop,
		std::string	name
	)

inline

Template specialization for double values.

This is a shortcut for osg::Uniform generation and osg::StateSet-binding.

Parameters

node	Node where the uniform should be bound to.
prop	The type of the uniform.
name	The name of the uniform.

Definition at line 186 of file WGEUtils.h.

◆ bindAsUniform< osg::ref_ptr< osg::Uniform > >()

template<>

void wge::bindAsUniform< osg::ref_ptr< osg::Uniform > >	(	osg::Node *	node,
		osg::ref_ptr< osg::Uniform >	uniform,
		std::string
	)

inline

Template specialization for osg::Uniform values.

Parameters

node	Node where the uniform should be bound to.
uniform	The type of the uniform.

Definition at line 275 of file WGEUtils.h.

◆ bindAsUniform< size_t >()

template<>

void wge::bindAsUniform< size_t >	(	osg::Node *	node,
		size_t	prop,
		std::string	name
	)

inline

Template specialization for size_t values.

This is a shortcut for osg::Uniform generation and osg::StateSet-binding.

Parameters

node	Node where the uniform should be bound to.
prop	The type of the uniform.
name	The name of the uniform.

Definition at line 201 of file WGEUtils.h.

◆ bindAsUniform< WPropBool >()

template<>

void wge::bindAsUniform< WPropBool >	(	osg::Node *	node,
		WPropBool	prop,
		std::string	name
	)

inline

Template specialization for WPropBool values.

This is a shortcut for osg::Uniform generation and osg::StateSet-binding.

Parameters

node	Node where the uniform should be bound to.
prop	The type of the uniform.
name	The name of the uniform.

Definition at line 246 of file WGEUtils.h.

◆ bindAsUniform< WPropColor >()

template<>

void wge::bindAsUniform< WPropColor >	(	osg::Node *	node,
		WPropColor	prop,
		std::string	name
	)

inline

Template specialization for WPropColor values.

This is a shortcut for osg::Uniform generation and osg::StateSet-binding.

Parameters

node	Node where the uniform should be bound to.
prop	The type of the uniform.
name	The name of the uniform.

Definition at line 231 of file WGEUtils.h.

◆ bindAsUniform< WPropDouble >()

template<>

void wge::bindAsUniform< WPropDouble >	(	osg::Node *	node,
		WPropDouble	prop,
		std::string	name
	)

inline

Template specialization for WPropDouble values.

This is a shortcut for osg::Uniform generation and osg::StateSet-binding.

Parameters

node	Node where the uniform should be bound to.
prop	The type of the uniform.
name	The name of the uniform.

Definition at line 216 of file WGEUtils.h.

◆ bindAsUniform< WPropInt >()

template<>

void wge::bindAsUniform< WPropInt >	(	osg::Node *	node,
		WPropInt	prop,
		std::string	name
	)

inline

Template specialization for WPropInt values.

This is a shortcut for osg::Uniform generation and osg::StateSet-binding.

Parameters

node	Node where the uniform should be bound to.
prop	The type of the uniform.
name	The name of the uniform.

Definition at line 261 of file WGEUtils.h.

◆ bindTexture() [1/3]

template<typename T >

void wge::bindTexture	(	osg::ref_ptr< osg::Node >	node,
		osg::ref_ptr< T >	texture,
		size_t	unit = `0`,
		std::string	prefix = `""`
	)

Binds the specified texture to the specified unit.

It automatically adds several uniforms which then can be utilized in the shader:

u_textureXUnit: the unit number (useful for accessing correct gl_TexCoord and so on)
u_textureXSampler: the needed sampler
u_textureXSizeX: width of the texture in pixels
u_textureXSizeY: height of the texture in pixels
u_textureXSizeZ: depth of the texture in pixels

Warning: this is not OSG-thread-safe. This method binds the texture immediately. So please use this only for nodes which are not yet used in the scene graph. For safely binding textures to a node already in the scene, utilize an update callback.

Parameters

node	where to bind
unit	the unit to use
texture	the texture to use.
prefix	if specified, defines the uniform name prefix. (Sampler, Unit, Sizes, ...)

Template Parameters

T	the type of texture. Usually osg::Texture3D or osg::Texture2D.

Definition at line 167 of file WGETextureUtils.h.

References string_utils::toString().

Here is the call graph for this function:

◆ bindTexture() [2/3]

void wge::bindTexture	(	osg::ref_ptr< osg::Node >	node,
		osg::ref_ptr< WDataTexture3D >	texture,
		size_t	unit = `0`,
		std::string	prefix = `""`
	)

Binds the specified texture to the specified unit.

It automatically adds several uniforms which then can be utilized in the shader:

u_textureXUnit: the unit number (useful for accessing correct gl_TexCoord and so on)
u_textureXSampler: the needed sampler
u_textureXSizeX: width of the texture in pixels
u_textureXSizeY: height of the texture in pixels
u_textureXSizeZ: depth of the texture in pixels If the specified texture is a WGETexture, it additionally adds u_textureXMin and u_textureXScale for unscaling.

Parameters

node	where to bind
unit	the unit to use
texture	the texture to use.
prefix	if specified, defines the uniform name prefix. (Sampler, Unit, Sizes, ...)

Template Parameters

T	the type of texture. Usually osg::Texture3D or osg::Texture2D.

Definition at line 182 of file WDataTexture3D.cpp.

Referenced by WGETexture< TextureType >::bind(), WGEOffscreenRenderPass::bind(), WGEColormapping::callback(), WMDirectVolumeRendering::moduleMain(), WMIsosurfaceRaytracer::moduleMain(), WMProjectionsAsContext::moduleMain(), WMTemplateShaders::moduleMain(), and WMTransferFunctionColorBar::moduleMain().

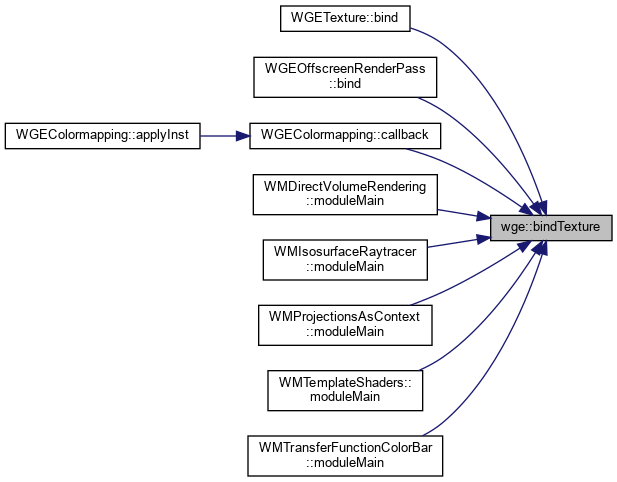

Here is the caller graph for this function:

◆ bindTexture() [3/3]

template<typename T >

void wge::bindTexture	(	osg::ref_ptr< osg::Node >	node,
		osg::ref_ptr< WGETexture< T > >	texture,
		size_t	unit = `0`,
		std::string	prefix = `""`
	)

Binds the specified texture to the specified unit.

It automatically adds several uniforms which then can be utilized in the shader:

u_textureXUnit: the unit number (useful for accessing correct gl_TexCoord and so on)
u_textureXSampler: the needed sampler
u_textureXSizeX: width of the texture in pixels
u_textureXSizeY: height of the texture in pixels
u_textureXSizeZ: depth of the texture in pixels If the specified texture is a WGETexture, it additionally adds u_textureXMin and u_textureXScale for unscaling.

Warning: this is not OSG-thread-safe. This method binds the texture immediately. So please use this only for nodes which are not yet used in the scene graph. For safely binding textures to a node already in the scene, utilize an update callback.

Parameters

node	where to bind
unit	the unit to use
texture	the texture to use.
prefix	if specified, defines the uniform name prefix. (Sampler, Unit, Sizes, ...)

Template Parameters

T	the type of texture. Usually osg::Texture3D or osg::Texture2D.

Definition at line 184 of file WGETextureUtils.h.

References string_utils::toString().

Here is the call graph for this function:

◆ convertToOsgGeometry() [1/2]

osg::ref_ptr< osg::Geometry > wge::convertToOsgGeometry	(	WTriangleMesh::SPtr	mesh,
		const WColor &	defaultColor = `WColor( 1.0, 1.0, 1.0, 1.0 )`,
		bool	includeNormals = `false`,
		bool	lighting = `false`,
		bool	useMeshColor = `true`
	)

Extract the vertices and triangles from a WTriangleMesh and save them into an osg::Geometry.

It can use the normals and per-vertex colors of the mesh.

Parameters

mesh	the WTriangleMesh used as input
includeNormals	When true, calculate the vertex normals and include them into the geometry.
defaultColor	This color is used in case the useMeshColor parameter is false or no colors are defined in the mesh.
lighting	if true, a standard lighting is activated for this geometry
useMeshColor	if true, the mesh color is used. If false, the defaultColor is used.

Returns: an osg::Geometry containing the mesh

Note: mesh cannot be const since osg::Geometry needs non-const pointers to the contained arrays

Definition at line 368 of file WGEGeodeUtils.cpp.

Referenced by convertToOsgGeometry(), WMEEGView::drawHeadSurface(), WMSurfaceIllustrator::renderMesh(), and WMTriangleMeshRenderer::renderMesh().

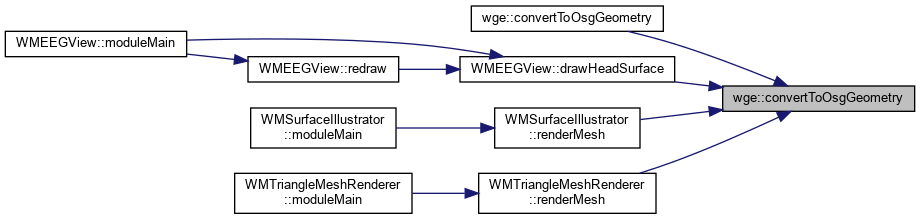

Here is the caller graph for this function:

◆ convertToOsgGeometry() [2/2]

osg::ref_ptr< osg::Geometry > wge::convertToOsgGeometry	(	WTriangleMesh::SPtr	mesh,
		const WColoredVertices &	colorMap,
		const WColor &	defaultColor = `WColor( 1.0, 1.0, 1.0, 1.0 )`,
		bool	includeNormals = `false`,
		bool	lighting = `false`
	)

Extract the vertices and triangles from a WTriangleMesh and save them into an osg::Geometry.

It can use the normals and per-vertex colors of the mesh. This method additionally uses the specified vertexID-color map to provide additional coloring.

Parameters

mesh	the WTriangleMesh used as input
colorMap	the map from vertex to color.
includeNormals	When true, calculate the vertex normals and include them into the geometry.
defaultColor	This color is used in case the colorMap does not provide a color for a vertex
lighting	if true, a standard lighting is activated for this geometry*

Returns: an osg::Geometry containing the mesh

Note: mesh cannot be const since osg::Geometry needs non-const pointers to the contained arrays

Definition at line 520 of file WGEGeodeUtils.cpp.

References convertToOsgGeometry(), and WColoredVertices::getData().

Here is the call graph for this function:

◆ convertToOsgGeometryFlatShaded()

osg::ref_ptr< osg::Geometry > wge::convertToOsgGeometryFlatShaded	(	WTriangleMesh::SPtr	mesh,
		const WColor &	defaultColor = `WColor( 1.0, 1.0, 1.0, 1.0 )`,
		bool	includeNormals = `false`,
		bool	lighting = `false`,
		bool	useMeshColor = `true`
	)

Extract the vertices and triangles from a WTriangleMesh and save them into an osg::Geometry in order to produce a flat shaded rendering.

Parameters

mesh	the WTriangleMesh used as input
includeNormals	When true, calculate the triangle normals and include them into the geometry.
defaultColor	This color is used in case the useMeshColor parameter is false or no colors are defined in the mesh.
lighting	if true, a standard lighting is activated for this geometry
useMeshColor	if true, the mesh color is used. If false, the defaultColor is used.

Returns: an osg::Geometry containing the mesh

Note: mesh cannot be const since osg::Geometry needs non-const pointers to the contained arrays

Definition at line 438 of file WGEGeodeUtils.cpp.

Referenced by WMTriangleMeshRenderer::renderMesh().

Here is the caller graph for this function:

◆ convertToOsgGeometryLines()

osg::ref_ptr< osg::Geometry > wge::convertToOsgGeometryLines	(	WTriangleMesh::SPtr	mesh,
		const WColor &	defaultColor = `WColor( 1.0, 1.0, 1.0, 1.0 )`,
		bool	useMeshColor = `true`
	)

Convert triangle mesh to lines representing it.

Draws lines twice (ATM).

Parameters

mesh	The WTriangleMesh used as input.
defaultColor	This color is used in case the useMeshColor parameter is false or no colors are defined in the mesh.
useMeshColor	If true, the mesh color is used. If false, the defaultColor is used.

Returns: an osg::Geometry containing the mesh as lines

Definition at line 549 of file WGEGeodeUtils.cpp.

Referenced by WMSurfaceIllustrator::renderMesh(), and WMTriangleMeshRenderer::renderMesh().

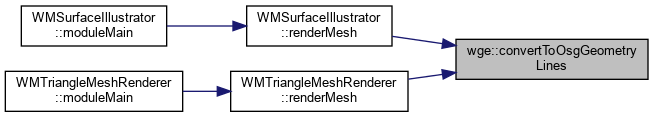

Here is the caller graph for this function:

◆ creatCoordinateSystem()

osg::ref_ptr< osg::Group > wge::creatCoordinateSystem	(	osg::Vec3	middle,
		double	sizeX,
		double	sizeY,
		double	sizeZ
	)

Create a coordinate system.

The coordinate system is build from cylinders and cones and includes a positive-to-negative color gradient.

Parameters

middle	osg::Vec3( middleX, middleY, middleZ ) middle points of X, Y, Z
sizeX	whole lenght of X
sizeY	whole lenght of Y
sizeZ	whole lenght of Z

Returns: Group Node

Definition at line 722 of file WGEGeodeUtils.cpp.

Referenced by WMTriangleMeshRenderer::renderMesh().

Here is the caller graph for this function:

◆ createColorFromHSV()

WColor wge::createColorFromHSV	(	int	h,
		float	s = `1.0`,
		float	v = `1.0`
	)

creates a rgb WColor from a HSV value

Parameters

h	hue
s	saturation
v	value

Returns: the color

Definition at line 136 of file WGEUtils.cpp.

Referenced by getNthHSVColor().

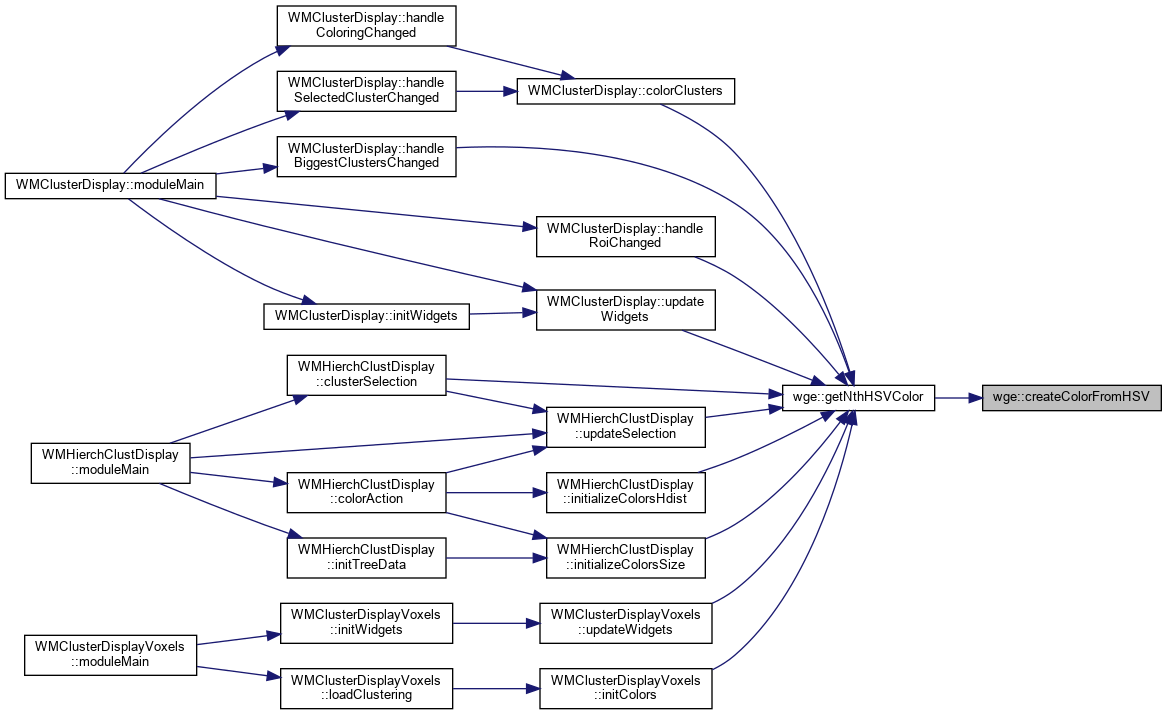

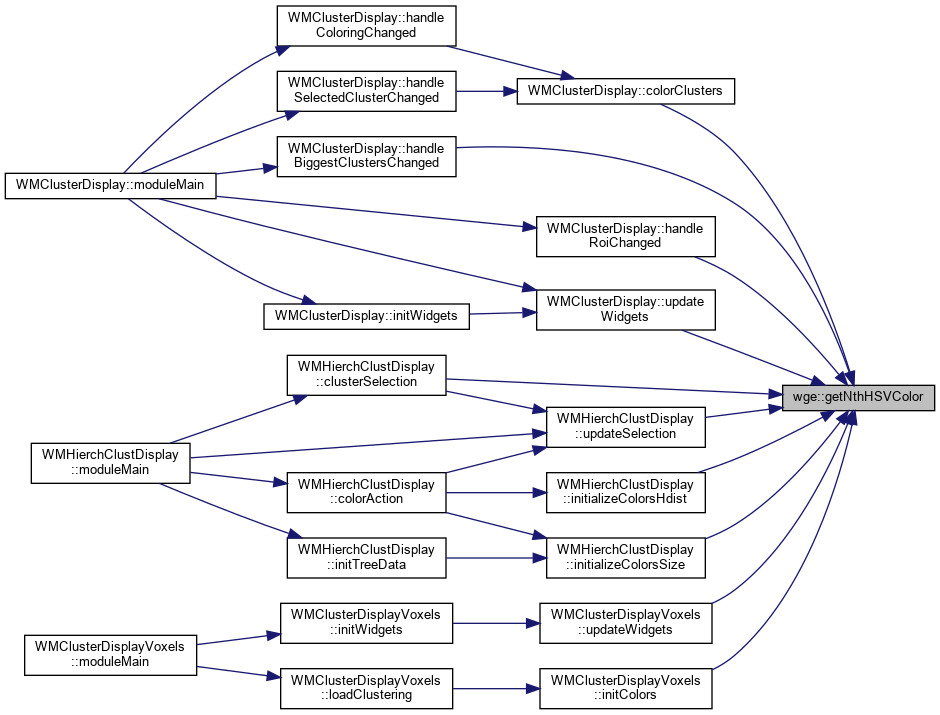

Here is the caller graph for this function:

◆ createColorFromIndex()

WColor wge::createColorFromIndex ( int index )

creates the same color as the atlas colormap shader from the index

Parameters

index unsigned char that indexes the color

Returns: the color

Definition at line 62 of file WGEUtils.cpp.

Referenced by WMPaintTexture::createROI().

Here is the caller graph for this function:

◆ createCube() [1/2]

osg::ref_ptr< osg::Geometry > wge::createCube	(	const WPosition &	position,
		const WPosition &	size,
		const WColor &	color
	)

Create an arbitrary cube.

Parameters

position	position of the lower,left,front vertex
size	size in x,y,z direction
color	a color

Returns: the drawable.

Definition at line 232 of file WGEGeodeUtils.cpp.

References createCube().

Here is the call graph for this function:

◆ createCube() [2/2]

void wge::createCube	(	osg::ref_ptr< osg::Geometry >	geometry,
		const WPosition &	position,
		const WPosition &	size,
		const WColor &	color
	)

Create an arbitrary cube and insert it into the given geometry.

You will get a cube with normals, tex coords and a single color. This function is very restrictive with respect to the given geode. It is not recommended to use it in combination with an geometry you already filled with something. It is designed to be used to fill many cubes into one geometry.

Parameters

position	position of the lower,left,front vertex
size	size in x,y,z direction
color	a color
geometry	the geometry where to add the cube. It can be completely empty (no arrays). If you use an invalid (in the following terms) geometry here, the graphics will fail. Ensure that you have a color array, tex array, normal array and vertex array, where the color array is used per primitive set and normals/tex are bound per vertex. The vertices/tex/normals need to be vec3 arrays. The color array needs to be a vec4 array.

Definition at line 99 of file WGEGeodeUtils.cpp.

Referenced by createCube(), createUnitCube(), WMVoxelizer::genDataSetGeode(), and WROIBox::updateGFX().

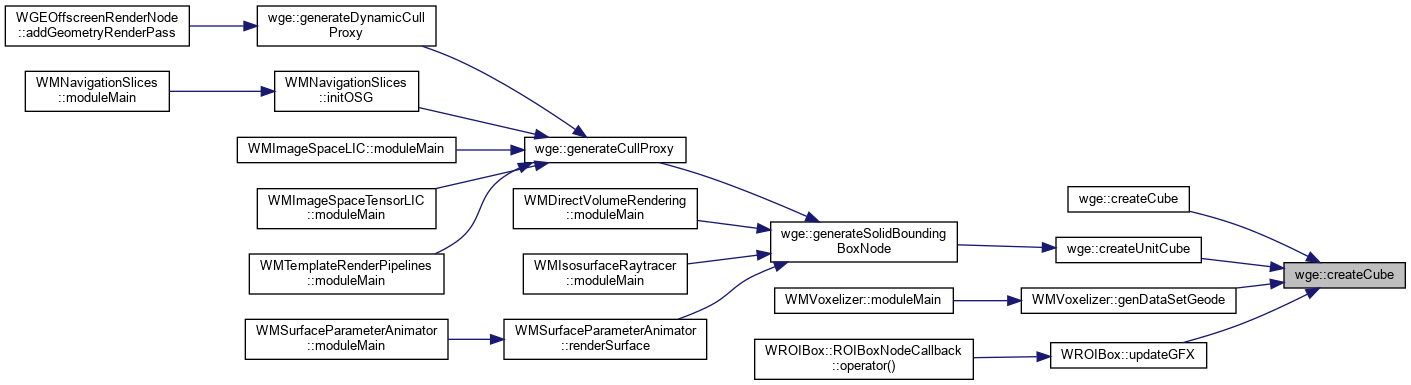

Here is the caller graph for this function:

◆ createUnitCube()

osg::ref_ptr< osg::Geometry > wge::createUnitCube ( const WColor & color )

Creates a osg::Geometry containing an unit cube, having 3D texture coordinates.

Parameters

color the color to set for all vertices

Returns: the geometry

Definition at line 240 of file WGEGeodeUtils.cpp.

References createCube().

Referenced by generateSolidBoundingBoxNode().

Here is the call graph for this function:

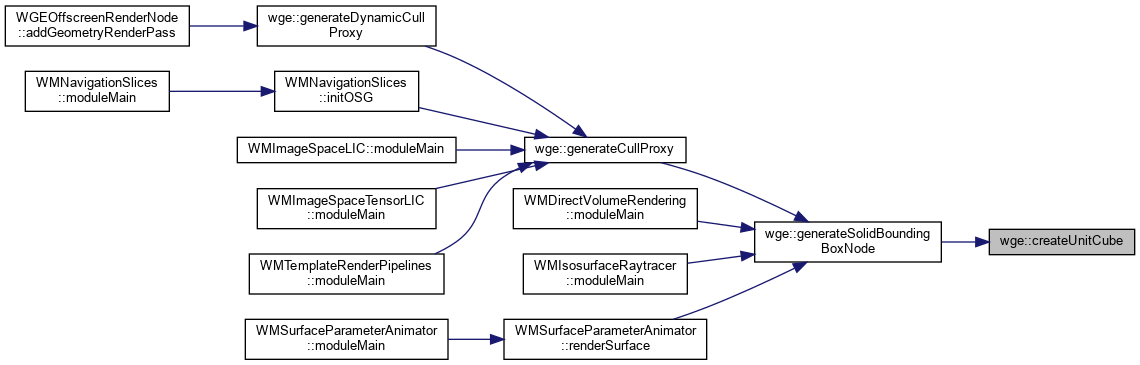

Here is the caller graph for this function:

◆ createUnitCubeAsLines()

osg::ref_ptr< osg::Geometry > wge::createUnitCubeAsLines	(	const WColor &	color,
		bool	asLines = `false`
	)

Creates a osg::Geometry containing an unit cube as line-strips, having 3D texture coordinates.

Parameters

color	the color to set for all vertices
asLines	force the cube to be made only of lines, no line strips.

Returns: the geometry

Definition at line 246 of file WGEGeodeUtils.cpp.

Referenced by WGEGridNode::WGEGridNode().

Here is the caller graph for this function:

◆ enableTransparency()

void wge::enableTransparency ( osg::ref_ptr< osg::Node > node )

Enable transparency for the given node.

This enabled blending and sets the node to the transparency bin.

Parameters

node the node

Definition at line 215 of file WGEUtils.cpp.

Referenced by WMIsosurfaceRaytracer::moduleMain(), WMPointRenderer::moduleMain(), and WMIsosurface::renderMesh().

Here is the caller graph for this function:

◆ generateBoundingBoxGeode()

osg::ref_ptr< osg::Geode > wge::generateBoundingBoxGeode	(	const WBoundingBox &	bb,
		const WColor &	color
	)

Generates an OSG geode for the bounding box.

Parameters

bb	The axis aligned bounding box to generate a geode from.
color	The color in which the bounding box should be generated

Returns: The OSG geode containing the 12 edges of the box.

Definition at line 51 of file WGEGeodeUtils.cpp.

References WBoundingBoxImpl< VT >::getMax(), and WBoundingBoxImpl< VT >::getMin().

Here is the call graph for this function:

◆ generateCuboidQuadNormals()

osg::ref_ptr< osg::Vec3Array > wge::generateCuboidQuadNormals ( const std::vector< WPosition > & corners )

Generates for all QUADS of the Cuboid the normals in the following order:

  z-axis  y-axis
  |      /
  | h___/_g
  |/:    /|
  d_:___c |
  | :...|.|
  |.e   | f
  |_____|/ ____x-axis
 a      b

a,b,c,d
b,f,g,c
f,e,h,g
e,a,d,h
d,c,g,h
a,b,f,e

Parameters

corners Corner points of the cuboid.

Returns: Array of normals in the order as shown above.

Definition at line 84 of file WGEGeometryUtils.cpp.

References getQuadNormal().

Here is the call graph for this function:

◆ generateCuboidQuads()

osg::ref_ptr< osg::Vec3Array > wge::generateCuboidQuads ( const std::vector< WPosition > & corners )

Creates out of eight corner vertices QUAD vertices.

Parameters

corners The eight corner vertices which must be in the following order:

 z-axis  y-axis
 |      /
 | h___/_g
 |/:    /|
 d_:___c |
 | :...|.|
 |.e   | f
 |_____|/ ____x-axis
a      b

The QUADS are generated in the following order:

a,b,c,d
b,f,g,c
f,e,h,g
e,a,d,h
d,c,g,h
a,b,f,e

Returns: OSG vertex array where every four vertices describing a QUAD.

Definition at line 37 of file WGEGeometryUtils.cpp.

◆ generateCullProxy()

osg::ref_ptr< osg::Node > wge::generateCullProxy ( const WBoundingBox & bbox )

Generate a proxy cube, which ensures OSG does proper near-far plane calculation and culling.

This is especially useful if you create some geometry and modify it on the GPU by shaders. In these cases, OSG will not properly cull and near-far clip. This cull proxy is basically a cube, which gets shrinked to zero size on the GPU. This ensures you cannot see it, but it makes OSG see you proper bounding volume.

Parameters

bbox	the bounding box to cover

Returns: the proxy. Add it to your scene root.

Definition at line 236 of file WGEUtils.cpp.

References generateSolidBoundingBoxNode().

Referenced by generateDynamicCullProxy(), WMNavigationSlices::initOSG(), WMImageSpaceLIC::moduleMain(), WMImageSpaceTensorLIC::moduleMain(), and WMTemplateRenderPipelines::moduleMain().

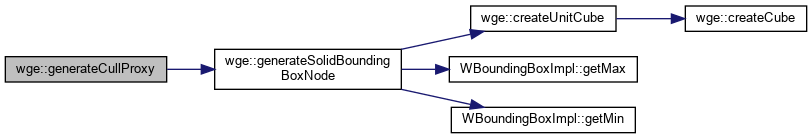

Here is the call graph for this function:

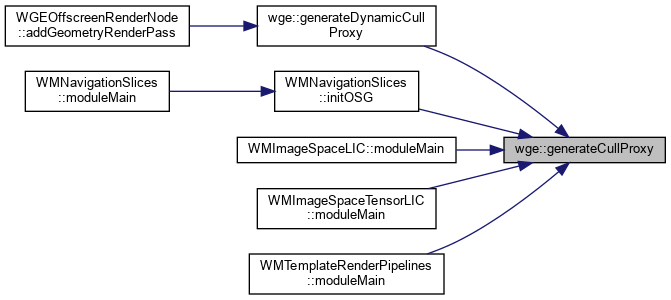

Here is the caller graph for this function:

◆ generateDynamicCullProxy()

osg::ref_ptr< osg::Node > wge::generateDynamicCullProxy ( osg::ref_ptr< osg::Node > node )

Generate a proxy cube, which ensures OSG does proper near-far plane calculation and culling.

This is especially useful if you create some geometry and modify it on the GPU by shaders. In these cases, OSG will not properly cull and near-far clip. This cull proxy is basically a cube, which gets shrinked to zero size on the GPU. This ensures you cannot see it, but it makes OSG see you proper bounding volume.

Note: dynamic cull proxys use the getBound method of the specified node before culling. So if you implement objects that change their size dynamically, add a osg::Node::ComputeBoundingSphereCallback to them; This method uses update callbacks. Remember to add your own callbacks via addUpdateCallback, instead of setUpdateCallback.

Parameters

node the node

Returns: the proxy. Add it to your scene root.

Definition at line 295 of file WGEUtils.cpp.

References generateCullProxy().

Referenced by WGEOffscreenRenderNode::addGeometryRenderPass().

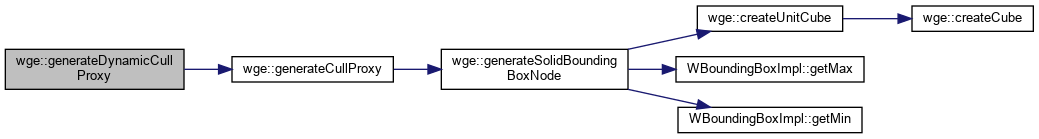

Here is the call graph for this function:

Here is the caller graph for this function:

◆ generateSolidBoundingBoxNode()

osg::ref_ptr< osg::Node > wge::generateSolidBoundingBoxNode	(	const WBoundingBox &	bb,
		const WColor &	color,
		bool	threeDTexCoords = `true`
	)

Generates an OSG node for the specified bounding box.

It uses solid faces. This actually returns a MatrixTransform node and is especially useful for shader based raytracing.

Parameters

bb	The axis aligned bounding box
color	The color in which the bounding box should be generated
threeDTexCoords	True if 3D texture coordinates should be created.

Returns: The OSG node containing the 12 edges of the box.

Definition at line 332 of file WGEGeodeUtils.cpp.

References createUnitCube(), WBoundingBoxImpl< VT >::getMax(), and WBoundingBoxImpl< VT >::getMin().

Referenced by generateCullProxy(), WMDirectVolumeRendering::moduleMain(), WMIsosurfaceRaytracer::moduleMain(), and WMSurfaceParameterAnimator::renderSurface().

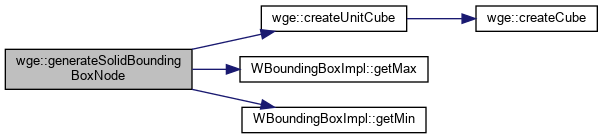

Here is the call graph for this function:

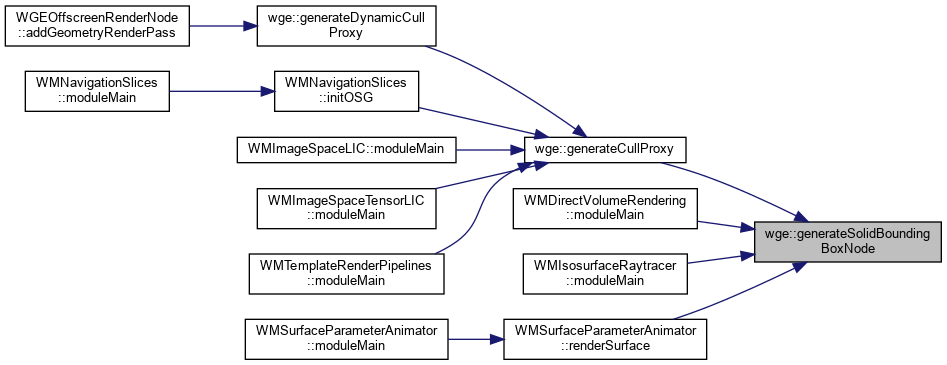

Here is the caller graph for this function:

◆ genFinitePlane() [1/2]

osg::ref_ptr< osg::Geode > wge::genFinitePlane	(	double	xSize,
		double	ySize,
		const WPlane &	p,
		const WColor &	color = `WColor( 0.0, 0.7, 0.7, 1.0 )`,
		bool	border = `false`
	)

Generates a geode out of a Plane with a fixed size in direction of the vectors which span that plane.

Parameters

xSize	how far the plane from its center along the x-axis should be drawn (both directions)
ySize	how far the plane from its center along the y-axis should be drawn (both directions)
p	The plane instance
color	The color of the plane
border	If true than a border around each plane is drawn in inverse color of the plane

Returns: The new assembled geode for this plane

Definition at line 630 of file WGEGeodeUtils.cpp.

References WPlane::getPointInPlane().

Referenced by WDemoGeometry::createPlaneGeometry(), WMNavigationSlices::initOSG(), WMImageSpaceLIC::initOSG(), WMImageSpaceTensorLIC::initOSG(), WMColormapper::moduleMain(), WMTransferFunctionColorBar::moduleMain(), WGEOffscreenTexturePass::setup(), and WGEViewerEffect::WGEViewerEffect().

Here is the call graph for this function:

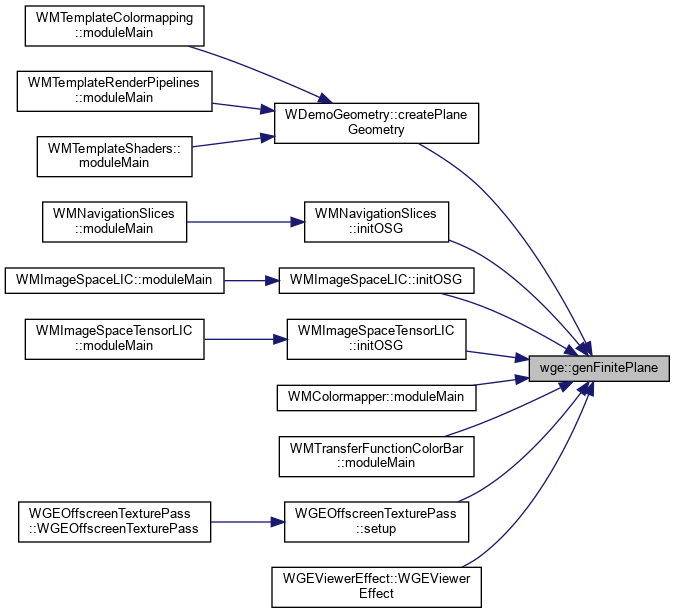

Here is the caller graph for this function:

◆ genFinitePlane() [2/2]

osg::ref_ptr< osg::Geode > wge::genFinitePlane	(	osg::Vec3 const &	base,
		osg::Vec3 const &	a,
		osg::Vec3 const &	b,
		const WColor &	color = `defaultColor::WHITE`
	)

Generates a geode out of two vectors and an origin position.

Parameters

base	the origin position. NOT the center.
a	the first vector spanning the plane
b	the second vector spanning the plane
color	the color to use.

Returns: the geode

Definition at line 673 of file WGEGeodeUtils.cpp.

◆ genTuringNoiseTexture()

osg::ref_ptr< WGETexture< osg::Texture3D > > wge::genTuringNoiseTexture	(	std::size_t	sizeX,
		std::size_t	sizeY,
		std::size_t	sizeZ,
		std::size_t	channels = `1`
	)

Generates a 3D turing noise texture.

For details, see:

Eichelbaum, Sebastian, et al. "Fabric-like visualization of tensor field data on arbitrary surfaces in image space." New Developments in the Visualization and Processing of Tensor Fields. Springer Berlin Heidelberg, 2012. 71-92.

Parameters

sizeX	The size of the textures in voxels, should be a power of 2.
sizeY	The size of the textures in voxels, should be a power of 2.
sizeZ	The size of the textures in voxels, should be a power of 2.
channels	The number of channels; either 1, 3 or 4.

Returns: The texture.

Definition at line 122 of file WGETextureUtils.cpp.

◆ genWhiteNoiseImage()

osg::ref_ptr< osg::Image > wge::genWhiteNoiseImage	(	size_t	sizeX,
		size_t	sizeY,
		size_t	sizeZ,
		size_t	channels = `1`
	)

Generates an image only containing white noise in its channels.

Parameters

sizeX	size in x direction (in pixels)
sizeY	size in y direction (in pixels)
sizeZ	size in z direction (in pixels)
channels	the number of channels. Valid are 1, 3 and 4.

Returns: the generated image.

Definition at line 94 of file WGETextureUtils.cpp.

Referenced by genWhiteNoiseTexture().

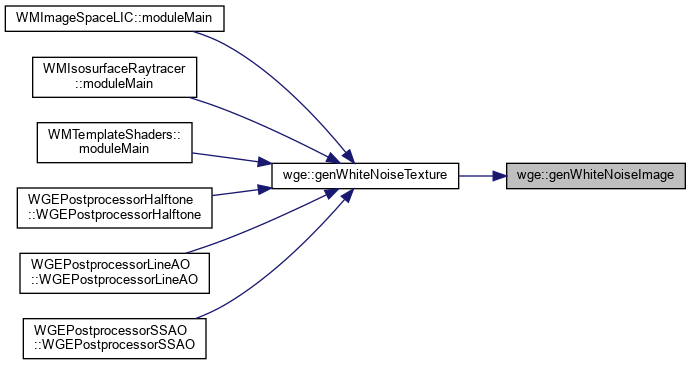

Here is the caller graph for this function:

◆ genWhiteNoiseTexture() [1/3]

osg::ref_ptr< WGETexture< osg::Texture1D > > wge::genWhiteNoiseTexture	(	size_t	sizeX,
		size_t	channels
	)

This generates an 1D texture only containing white noise in its channels.

Parameters

sizeX	size in x direction (in pixels)
channels	the number of channels. Valid are 1, 3 and 4.

Returns: the generated texture.

Definition at line 54 of file WGETextureUtils.cpp.

References genWhiteNoiseImage().

Referenced by WMImageSpaceLIC::moduleMain(), WMIsosurfaceRaytracer::moduleMain(), WMTemplateShaders::moduleMain(), WGEPostprocessorHalftone::WGEPostprocessorHalftone(), WGEPostprocessorLineAO::WGEPostprocessorLineAO(), and WGEPostprocessorSSAO::WGEPostprocessorSSAO().

Here is the call graph for this function:

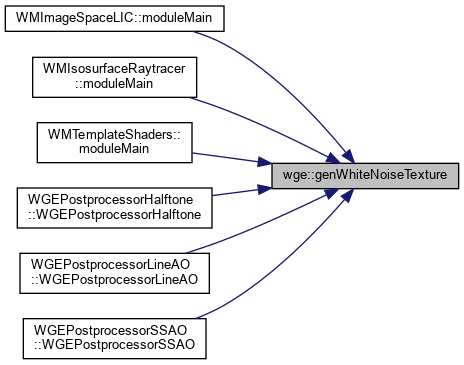

Here is the caller graph for this function:

◆ genWhiteNoiseTexture() [2/3]

osg::ref_ptr< WGETexture< osg::Texture2D > > wge::genWhiteNoiseTexture	(	size_t	sizeX,
		size_t	sizeY,
		size_t	channels
	)

This generates an 2D texture only containing white noise in its channels.

Parameters

sizeX	size in x direction (in pixels)
sizeY	size in y direction (in pixels)
channels	the number of channels. Valid are 1, 3 and 4.

Returns: the generated texture.

Definition at line 66 of file WGETextureUtils.cpp.

References genWhiteNoiseImage().

Here is the call graph for this function:

◆ genWhiteNoiseTexture() [3/3]

osg::ref_ptr< WGETexture< osg::Texture3D > > wge::genWhiteNoiseTexture	(	size_t	sizeX,
		size_t	sizeY,
		size_t	sizeZ,
		size_t	channels
	)

This generates an 3D texture only containing white noise in its channels.

Parameters

sizeX	size in x direction (in pixels)
sizeY	size in y direction (in pixels)
sizeZ	size in z direction (in pixels)
channels	the number of channels. Valid are 1, 3 and 4.

Returns: the generated texture.

Definition at line 79 of file WGETextureUtils.cpp.

References genWhiteNoiseImage().

Here is the call graph for this function:

◆ getMaxTexUnits()

size_t wge::getMaxTexUnits ( )

Returns the maximum number of textures that can be bound to a node.

Call this only from withing the OSG thread!

Returns: the max number of texture units.

Definition at line 45 of file WGETextureUtils.cpp.

Referenced by WGEColormapping::callback().

Here is the caller graph for this function:

◆ getNthHSVColor()

WColor wge::getNthHSVColor ( int n )

creates the nth color of a partition of the hsv color circle

Parameters

n	number of the color

Returns: the color

Definition at line 168 of file WGEUtils.cpp.

References createColorFromHSV().

Referenced by WMHierchClustDisplay::clusterSelection(), WMClusterDisplay::colorClusters(), WMClusterDisplay::handleBiggestClustersChanged(), WMClusterDisplay::handleRoiChanged(), WMClusterDisplayVoxels::initColors(), WMHierchClustDisplay::initializeColorsHdist(), WMHierchClustDisplay::initializeColorsSize(), WMHierchClustDisplay::updateSelection(), WMClusterDisplay::updateWidgets(), and WMClusterDisplayVoxels::updateWidgets().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getQuadNormal()

osg::Vec3 wge::getQuadNormal	(	const WPosition &	a,
		const WPosition &	b,
		const WPosition &	c
	)

Generates for a QUAD given via 3 three points ( the fourth is not needed ) the normal.

Parameters

a	First point of the QUAD
b	Second point of the QUAD
c	Third point of the QUAD

Returns: OSG Vector of the normal of the QUAD

Definition at line 74 of file WGEGeometryUtils.cpp.

Referenced by generateCuboidQuadNormals().

Here is the caller graph for this function:

◆ getRGBAColorFromDirection()

WColor wge::getRGBAColorFromDirection	(	const WPosition &	pos1,
		const WPosition &	pos2
	)

inline

Transforms a direction given via two points into a RGB color.

Parameters

pos1	First point
pos2	Second point

Returns: converts a vector to a color

Definition at line 162 of file WGEUtils.h.

◆ osgVec3Array()

osg::ref_ptr< osg::Vec3Array > wge::osgVec3Array ( const std::vector< WPosition > & posArray )

Converts a whole vector of WPositions into an osg::Vec3Array.

Parameters

posArray The given positions vector

Returns: Refernce to the same vector but as osg::Vec3Array.

Definition at line 40 of file WGEUtils.cpp.

Referenced by triangulate().

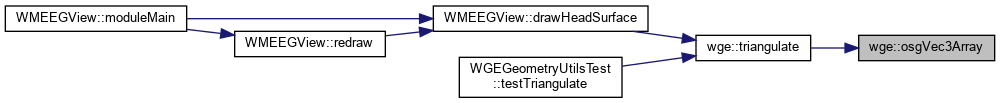

Here is the caller graph for this function:

◆ toUniformType() [1/2]

template<typename InType >

UniformType< InType >::Type wge::toUniformType ( const InType & in )

Create an instance of the uniform target type given some input type.

Template Parameters

InType the input type

Parameters

in	the input value

Returns: the resulting uniform type

Definition at line 128 of file WGEUniformTypeTraits.h.

◆ toUniformType() [2/2]

osg::Vec2 wge::toUniformType ( const WIntervalDouble & in )

Creates an OSG vec2 when an interval is inserted.

Parameters

in	the interval to convert

Returns: the vector

Definition at line 29 of file WGEUniformTypeTraits.cpp.

References WInterval< T >::getLower(), and WInterval< T >::getUpper().

Referenced by WGEPropertyUniformCallback< T >::operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ triangulate()

WTriangleMesh::SPtr wge::triangulate	(	const std::vector< WPosition > &	points,
		double	transformationFactor = `0.0`
	)

Calculate the Delaunay Triangulation of the given points.

If the parameter transformationFactor is not zero, the points will be transformed to calcule the triangles to get a better triangulation, but the returned mesh will consist of the original points. Every point which lies above the centroid of all points will be put away from this centroid by transformationFactor * height above the centroid. Any point below the centroid will be drawn to the centroid because its height is negative. This effect is inverted with a negative transformationFactor. This transformation is used to calculate the head surface between several electrodes, were a transformationFactor of -0.005 is reasonable.

Parameters

points	vector of the points to triangulate
transformationFactor	magnitude of the transformation before the triangulation

Returns: triangulation as WTriangleMesh

Definition at line 97 of file WGEGeometryUtils.cpp.

References osgVec3Array().

Referenced by WMEEGView::drawHeadSurface(), and WGEGeometryUtilsTest::testTriangulate().

Here is the call graph for this function:

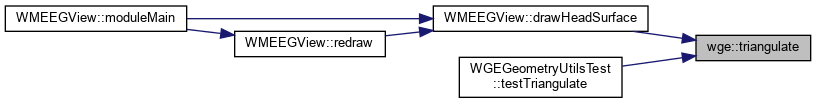

Here is the caller graph for this function:

◆ unbindTexture()

void wge::unbindTexture	(	osg::ref_ptr< osg::Node >	node,
		size_t	unit,
		size_t	count = `1`
	)

Removes the binding associated with the specified unit.

Parameters

unit	the unit to unbind
node	the node from which the binding should be removed
count	the number of units beginning at the specified one should be unbound? 1 is the default.

Definition at line 36 of file WGETextureUtils.cpp.

Referenced by WGEColormapping::callback().

Here is the caller graph for this function:

◆ unprojectFromScreen() [1/2]

osg::Vec3 wge::unprojectFromScreen	(	const osg::Vec3	screen,
		osg::ref_ptr< WGECamera >	camera
	)

Converts screen coordinates into Camera coordinates.

Parameters

screen	the screen coordinates
camera	The matrices of this camera will used for unprojecting.

Returns: un-projects a screen coordinate back to world space

Definition at line 52 of file WGEUtils.cpp.

Referenced by WMNavigationSlices::PickCallback::pick(), WROIBox::updateGFX(), and WROISphere::updateGFX().

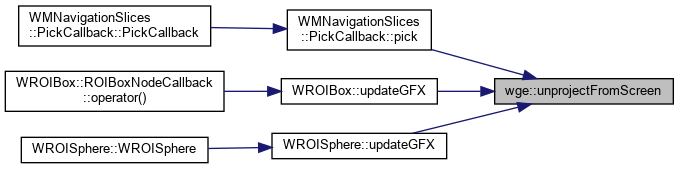

Here is the caller graph for this function:

◆ unprojectFromScreen() [2/2]

osg::Vec4 wge::unprojectFromScreen	(	const osg::Vec4	screen,
		osg::ref_ptr< WGECamera >	camera
	)

Converts screen coordinates into Camera coordinates.

Note: this method can be useful to work with vectors (w component 0)

Parameters

screen	the screen coordinates
camera	The matrices of this camera will used for unprojecting.

Returns: un-projects a screen coordinate back to world space

Definition at line 57 of file WGEUtils.cpp.

◆ vector2label()

osg::ref_ptr< osg::PositionAttitudeTransform > wge::vector2label ( osg::Vec3 position )

helper function to add a label with it's position vector

Parameters

position position of the label

Returns: a positionattitudetransfom object containing the label

Definition at line 623 of file WGEGeodeUtils.cpp.

References addLabel(), and string_utils::toString().

Here is the call graph for this function:

Classes

Functions

Detailed Description

Function Documentation

◆ addLabel()

◆ bindAsUniform()

◆ bindAsUniform< double >()

◆ bindAsUniform< osg::ref_ptr< osg::Uniform > >()

◆ bindAsUniform< size_t >()

◆ bindAsUniform< WPropBool >()

◆ bindAsUniform< WPropColor >()

◆ bindAsUniform< WPropDouble >()

◆ bindAsUniform< WPropInt >()

◆ bindTexture() [1/3]

◆ bindTexture() [2/3]

◆ bindTexture() [3/3]

◆ convertToOsgGeometry() [1/2]

◆ convertToOsgGeometry() [2/2]

◆ convertToOsgGeometryFlatShaded()

◆ convertToOsgGeometryLines()

◆ creatCoordinateSystem()

◆ createColorFromHSV()

◆ createColorFromIndex()

◆ createCube() [1/2]

◆ createCube() [2/2]

◆ createUnitCube()

◆ createUnitCubeAsLines()

◆ enableTransparency()

◆ generateBoundingBoxGeode()

◆ generateCuboidQuadNormals()

◆ generateCuboidQuads()

◆ generateCullProxy()

◆ generateDynamicCullProxy()

◆ generateSolidBoundingBoxNode()

◆ genFinitePlane() [1/2]

◆ genFinitePlane() [2/2]

◆ genTuringNoiseTexture()

◆ genWhiteNoiseImage()

◆ genWhiteNoiseTexture() [1/3]

◆ genWhiteNoiseTexture() [2/3]

◆ genWhiteNoiseTexture() [3/3]

◆ getMaxTexUnits()

◆ getNthHSVColor()

◆ getQuadNormal()

◆ getRGBAColorFromDirection()

◆ osgVec3Array()

◆ toUniformType() [1/2]

◆ toUniformType() [2/2]

◆ triangulate()

◆ unbindTexture()

◆ unprojectFromScreen() [1/2]

◆ unprojectFromScreen() [2/2]

◆ vector2label()
